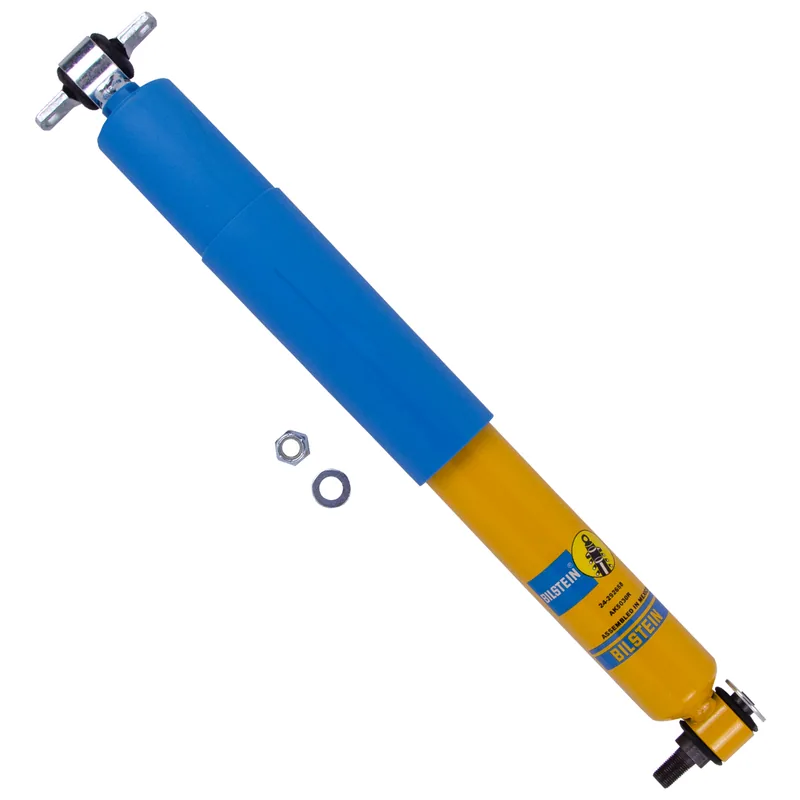

Bilstein 24-292658 AK Series Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- F4-BE5-F133-M1
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 58 × 13 × 13 cm, 2.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.28
- Collapsed Length (in)
- 13.11
- Extended Length (mm)
- 515.0
- Collapsed Length (mm)
- 333.0
- Piston Diameter
- 46mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Bar Pin
- Lower Mount Type
- Cantilever
- Body Design
- Stock Mount Smooth Body
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Valve Code
- 300/120
- Stroke/travel Length (in)
- 7.17
- Compression @0.52m/s
- 805
- Rebound @0.52m/s
- 2730
- Body Material
- Steel
- Replacement Mounting Kit
- B4-KT1-Z232A00
- Spring Hardware
- N/A
- Piston Type
- Digressive
- Base Valve
- No
- Service Type
- Sealed Non-rebuildable
- Racing Type
- Circle Track
- Racing Class
- Stock Car
- Stroke/travel Length (in) Rounded
- 7
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
