BetterB6 4600

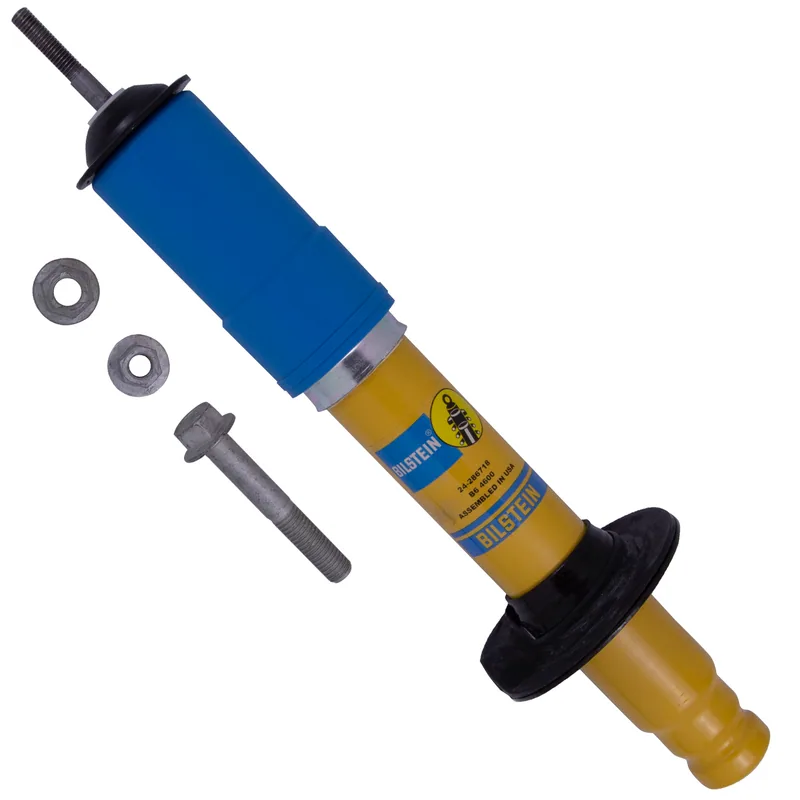

Bilstein 24-286718 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Chevrolet 15267594, Chevrolet 89040323, General Motors 15267594, General Motors 89040323, GMC 15267594
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 46 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
4 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet SSR | 2003–2006 | Base | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 15.72
- Collapsed Length (in)
- 11.02
- Extended Length (mm)
- 399.3
- Collapsed Length (mm)
- 280.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.70
- Replacement Mounting Kit
- B4-KT1-Z381A00
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
