BetterB8 5100

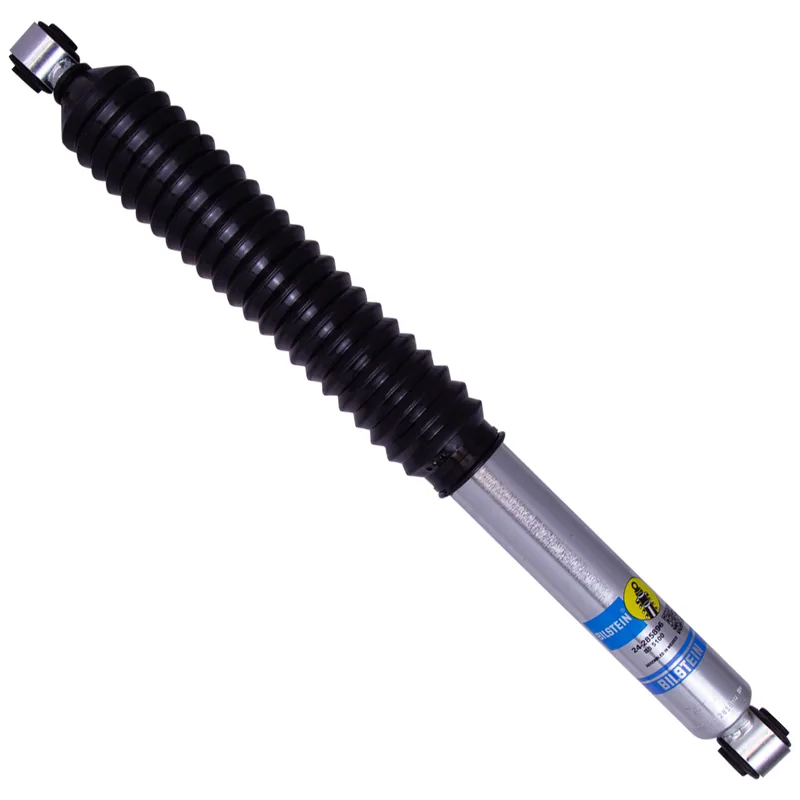

Bilstein 24-285896 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 73 × 11 × 11 cm, 2.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
48 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Silverado 1500 | 2016–2018 | Custom, High Country, LS, LT, LTZ, WT | Rear | All |
|
| Chevrolet Silverado 1500 | 2015 | High Country, LS, LT, LTZ, WT | Rear | All |
|
| Chevrolet Silverado 1500 | 2014 | High Country, LT, LTZ, WT | Rear | All |
|
| Chevrolet Silverado 1500 LD | 2019 | Custom, LT, WT | Rear | All |
|
| GMC Sierra 1500 | 2015–2018 | Base, SLE, SLT | Rear | All |
|
| GMC Sierra 1500 | 2014 | Base, Denali, SLE, SLT | Rear | All |
|
| GMC Sierra 1500 Limited | 2019 | Base, SLE | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.20
- Collapsed Length (in)
- 16.57
- Extended Length (mm)
- 665.5
- Collapsed Length (mm)
- 420.8
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 14.1mm
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.63
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
