BetterB8 5100

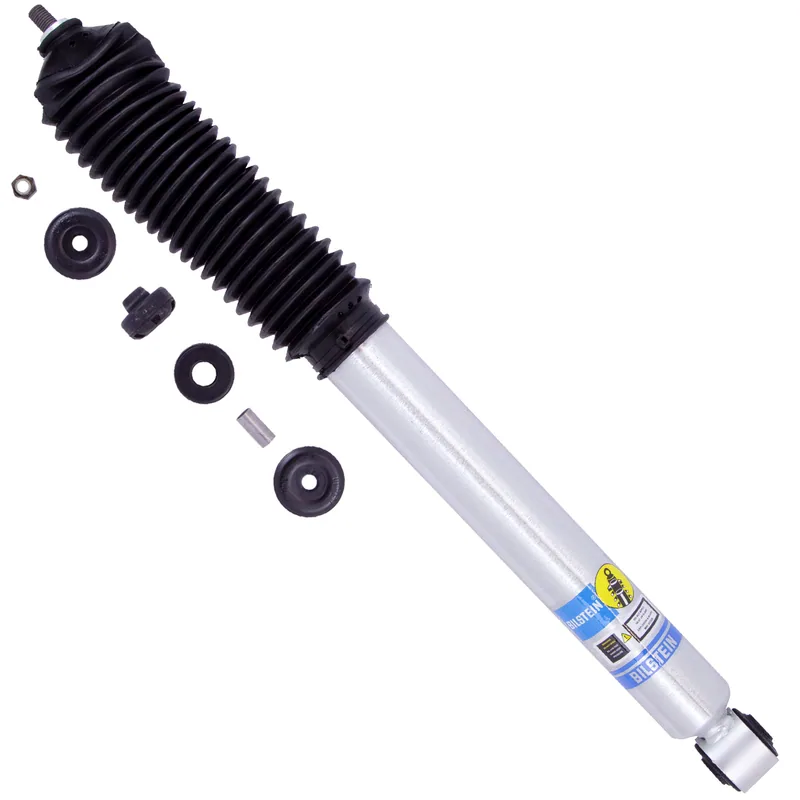

Bilstein 24-285698 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 78 × 11 × 11 cm, 3.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

90 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 2500	Years	2026	Submodels	Big Horn, Black Express, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman, Warlock	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2024–2025	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2023	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2022	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2019–2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2016–2018	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, SLT, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2015–2016	Submodels	Outdoorsman	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2015	Submodels	Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2014	Submodels	Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, Outdoorsman, SLT, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 4" Rear Lift Without Air Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 28.24
Collapsed Length (in): 18.66
Extended Length (mm): 717.2
Collapsed Length (mm): 474.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.4mm
Body Design: Smooth Body (Non-coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 9.58
Replacement Mounting Kit: B4-KT1-Z223A01

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
