BetterB6 4600

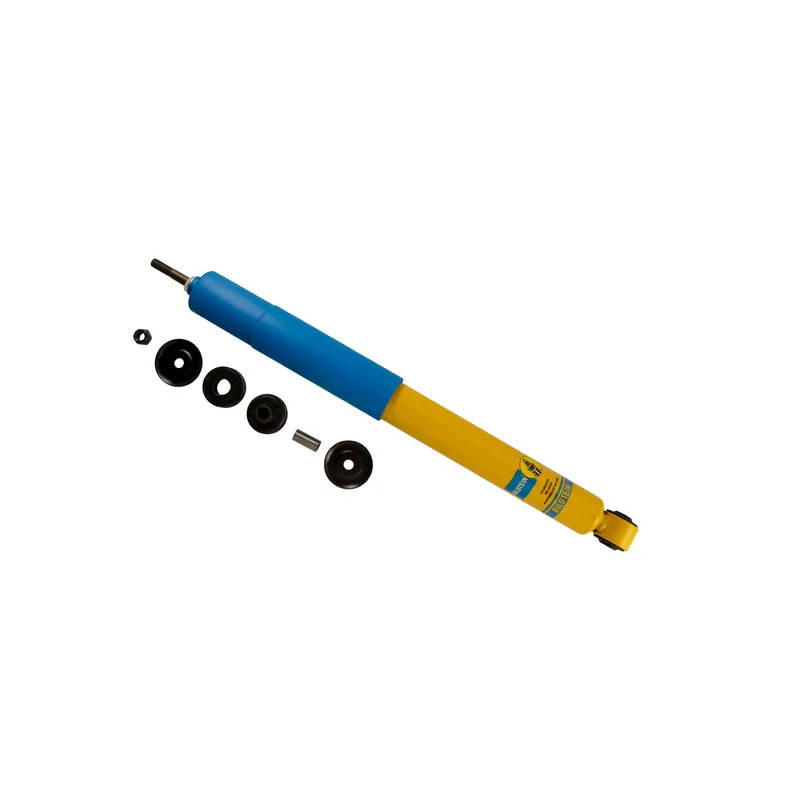

Bilstein 24-285650 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Dodge 68233895AD, Dodge 68233895AE, Dodge 68233906AD, Dodge 68233906AE
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 65 × 11 × 11 cm, 2.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
35 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram 2500 | 2016–2018 | Big Horn, Laramie, Laramie Longhorn, Limited, SLT, Tradesman | Rear | 4WD |
|
| Ram 2500 | 2014–2016 | Outdoorsman | Rear | All |
|
| Ram 2500 | 2014–2015 | Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, Tradesman | Rear | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.97
- Collapsed Length (in)
- 16.54
- Extended Length (mm)
- 583.5
- Collapsed Length (mm)
- 420.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.4mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 6.41
- Replacement Mounting Kit
- B4-KT1-Z223A01
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
