BetterB8 5100

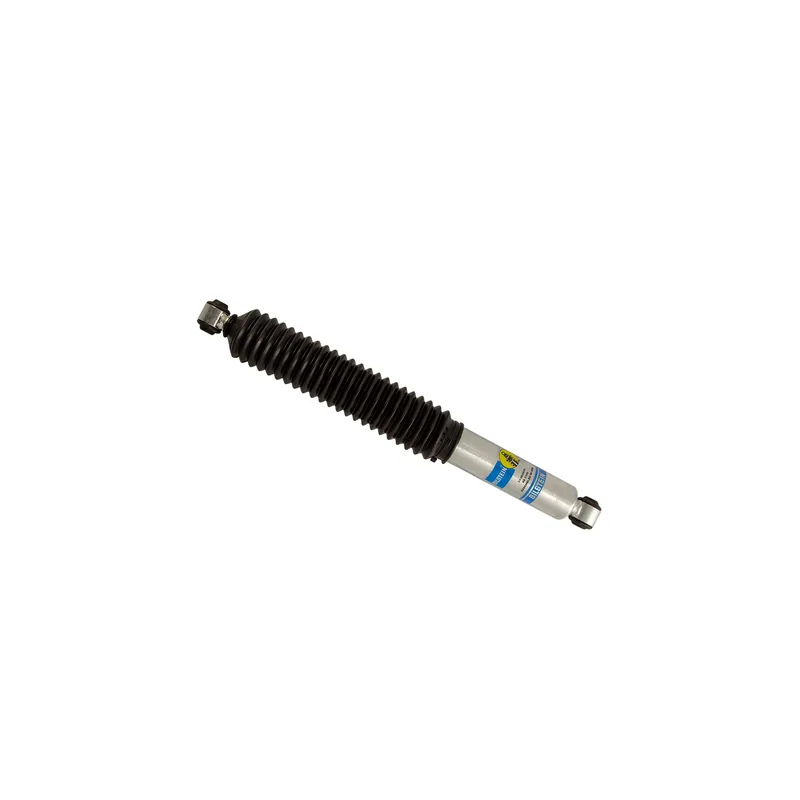

Bilstein 24-282659 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 62 × 11 × 11 cm, 7.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
32 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Liberty | 2012 | Jet, Limited, Sport | Rear | All |
|
| Jeep Liberty | 2010–2011 | Limited, Renegade, Sport | Rear | All |
|
| Jeep Liberty | 2007–2009 | Limited, Sport | Rear | All |
|
| Jeep Liberty | 2006 | 65th Anniversary Edition, Limited, Renegade, Sport | Rear | All |
|
| Jeep Liberty | 2005 | Limited, Renegade, Rocky Mountain Edition, Sport | Rear | All |
|
| Jeep Liberty | 2002–2004 | Limited, Renegade, Sport | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.95
- Collapsed Length (in)
- 13.96
- Extended Length (mm)
- 557.5
- Collapsed Length (mm)
- 354.6
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Eye 12.1mm
- Lower Mount Type
- Eye 12.1mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 7.99
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
