BetterB6 4600

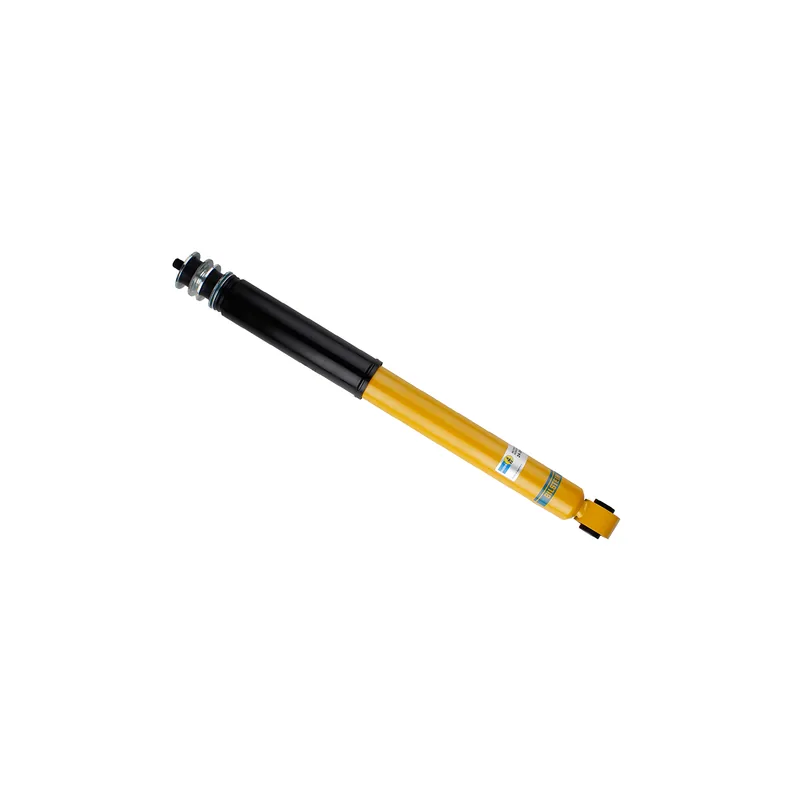

Bilstein 24-269049 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48530-69435, Toyota 48530-69495, Toyota 48530-69695
- Replaces Bilstein
- 24-152938
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 65 × 11 × 11 cm, 3.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Land Cruiser | 2020–2021 | Base, Heritage Edition | Rear | All | — |
| Toyota Land Cruiser | 2013–2019 | Base | Rear | All | — |
| Toyota Land Cruiser | 2008–2011 | Base | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.19
- Collapsed Length (in)
- 14.61
- Extended Length (mm)
- 589.0
- Collapsed Length (mm)
- 371.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 19.1mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 8.58
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
