BetterB8 5100

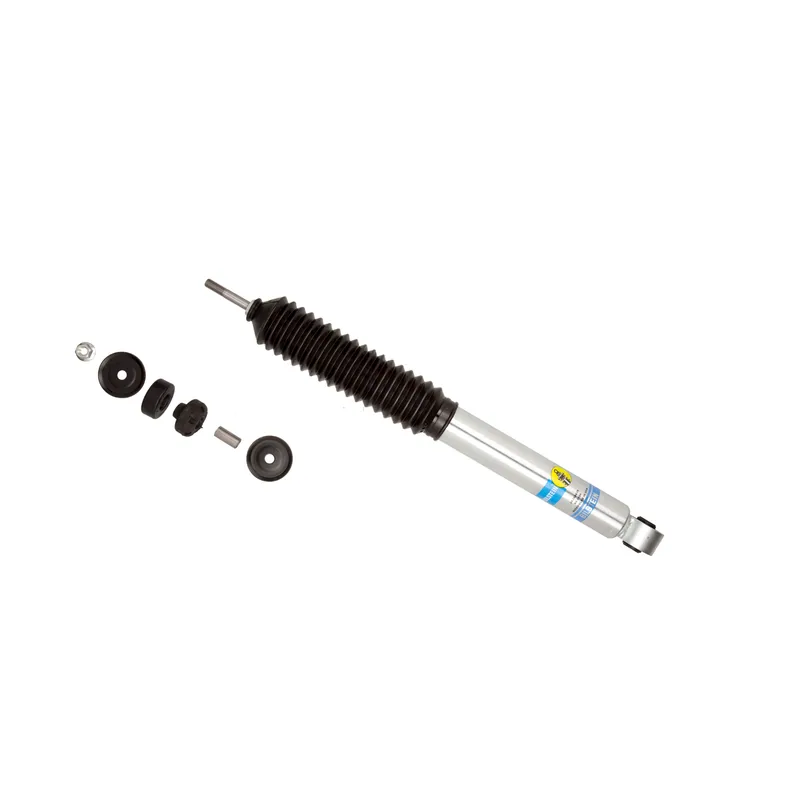

Bilstein 24-268639 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-251754
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 64 × 11 × 11 cm, 2.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
88 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram 2500 | 2026 | Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman, Warlock | Front | 4WD |
|
| Ram 2500 | 2023–2025 | Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman | Front | 4WD |
|
| Ram 2500 | 2022 | Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman | Front | 4WD |
|
| Ram 2500 | 2021 | Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Tradesman | Front | 4WD |
|
| Ram 2500 | 2019–2020 | Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Tradesman | Front | 4WD |
|
| Ram 2500 | 2016–2018 | Big Horn, Laramie, Laramie Longhorn, Limited, SLT, Tradesman | Front | 4WD |
|
| Ram 2500 | 2014–2016 | Outdoorsman | Front | All |
|
| Ram 2500 | 2014–2015 | Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, Tradesman | Front | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.63
- Collapsed Length (in)
- 15.03
- Extended Length (mm)
- 575.0
- Collapsed Length (mm)
- 382.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 7.50
- Replacement Mounting Kit
- B4-KT1-Z223A02
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
