BetterB8 5100

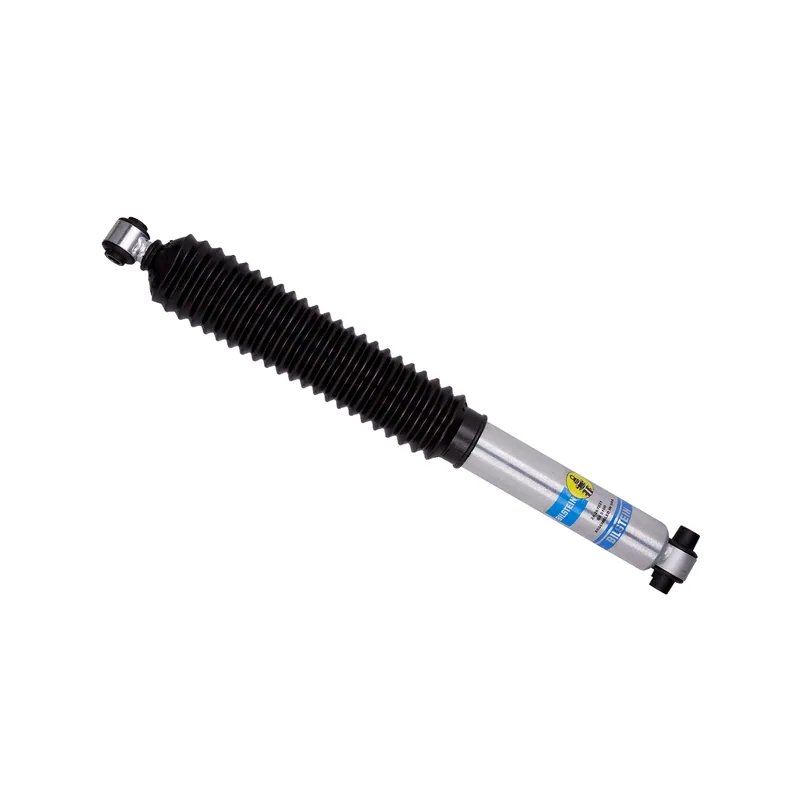

Bilstein 24-267021 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 66 × 11 × 11 cm, 2.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

74 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Trailblazer	Years	2009	Submodels	LT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer	Years	2008	Submodels	Base, LT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer	Years	2005–2007	Submodels	LS, LT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer	Years	2004	Submodels	LS, LT, North Face	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer	Years	2002–2003	Submodels	LS, LT, LTZ, North Face	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer EXT	Years	2005–2006	Submodels	LS, LT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer EXT	Years	2003–2004	Submodels	LS, LT, North Face	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Chevrolet Trailblazer EXT	Years	2002	Submodels	LT, North Face	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
GMC Envoy	Years	2002–2009	Submodels	SLE, SLT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
GMC Envoy XL	Years	2002–2006	Submodels	SLE, SLT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift
Isuzu Ascender	Years	2007–2008	Submodels	S	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1" Rear Lift
Isuzu Ascender	Years	2006	Submodels	Base, LS	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1" Rear Lift
Isuzu Ascender	Years	2004–2005	Submodels	LS, Limited, S	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1" Rear Lift
Isuzu Ascender	Years	2003	Submodels	Base, LS, Limited	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1" Rear Lift
Oldsmobile Bravada	Years	2002–2004	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 23.30
Collapsed Length (in): 14.63
Extended Length (mm): 591.7
Collapsed Length (mm): 371.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 12.9mm
Lower Mount Type: Eye 12.9mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 8.67

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
