BetterB8 5100

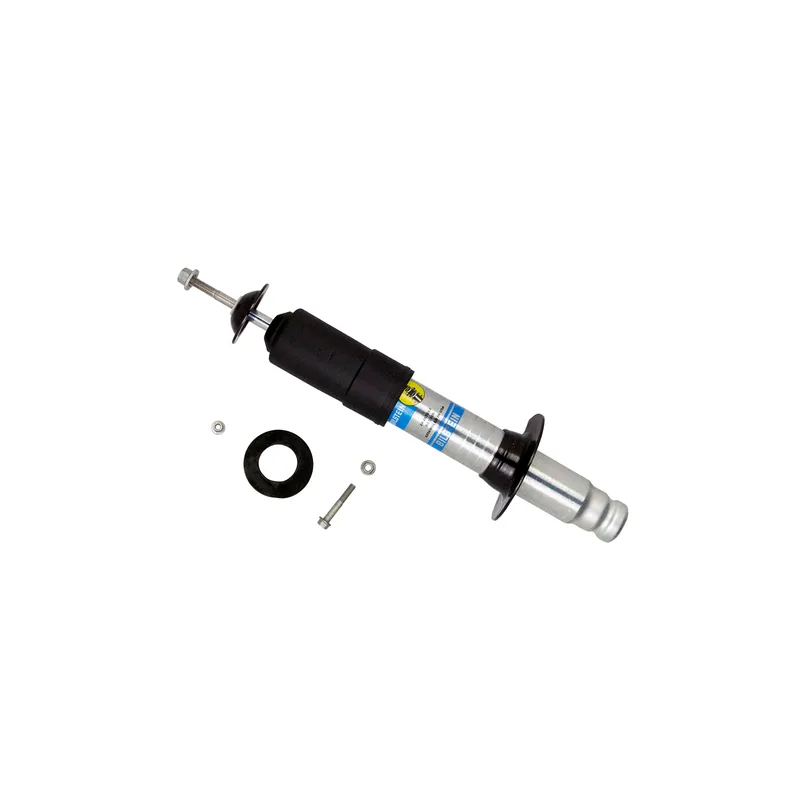

Bilstein 24-267014 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 48 × 11 × 11 cm, 2.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

97 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Buick Rainier	Years	2006–2007	Submodels	CXL	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Buick Rainier	Years	2004–2005	Submodels	CXL, CXL Plus	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Chevrolet Trailblazer	Years	2009	Submodels	LT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.25" Front Lift
Chevrolet Trailblazer	Years	2008	Submodels	Base, LT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.25" Front Lift
Chevrolet Trailblazer	Years	2005–2007	Submodels	LS, LT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.25" Front Lift
Chevrolet Trailblazer	Years	2004	Submodels	LS, LT, North Face	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.25" Front Lift
Chevrolet Trailblazer	Years	2002–2003	Submodels	LS, LT, LTZ, North Face	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.25" Front Lift
Chevrolet Trailblazer EXT	Years	2005–2006	Submodels	LS, LT	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Chevrolet Trailblazer EXT	Years	2003–2004	Submodels	LS, LT, North Face	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Chevrolet Trailblazer EXT	Years	2002	Submodels	LT, North Face	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
GMC Envoy	Years	2005–2009	Submodels	Denali, SLE, SLT	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
GMC Envoy	Years	2002–2004	Submodels	SLE, SLT	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
GMC Envoy XL	Years	2005–2006	Submodels	Denali, SLE, SLT	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
GMC Envoy XL	Years	2002–2004	Submodels	SLE, SLT	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Isuzu Ascender	Years	2007–2008	Submodels	S	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Isuzu Ascender	Years	2006	Submodels	Base, LS	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Isuzu Ascender	Years	2004–2005	Submodels	LS, Limited, S	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Isuzu Ascender	Years	2003	Submodels	Base, LS, Limited	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Oldsmobile Bravada	Years	2002–2004	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Saab 9-7x	Years	2006–2009	Submodels	4.2i, 5.3i	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift
Saab 9-7x	Years	2005	Submodels	Arc, Linear	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.25" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 16.41
Collapsed Length (in): 11.26
Extended Length (mm): 416.9
Collapsed Length (mm): 286.1
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Base Cup
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Straight
Spring Seat Included: Yes
Stroke/travel Length (in): 5.15
Replacement Mounting Kit: B4-KT1-Z381A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
