BetterB8 5100

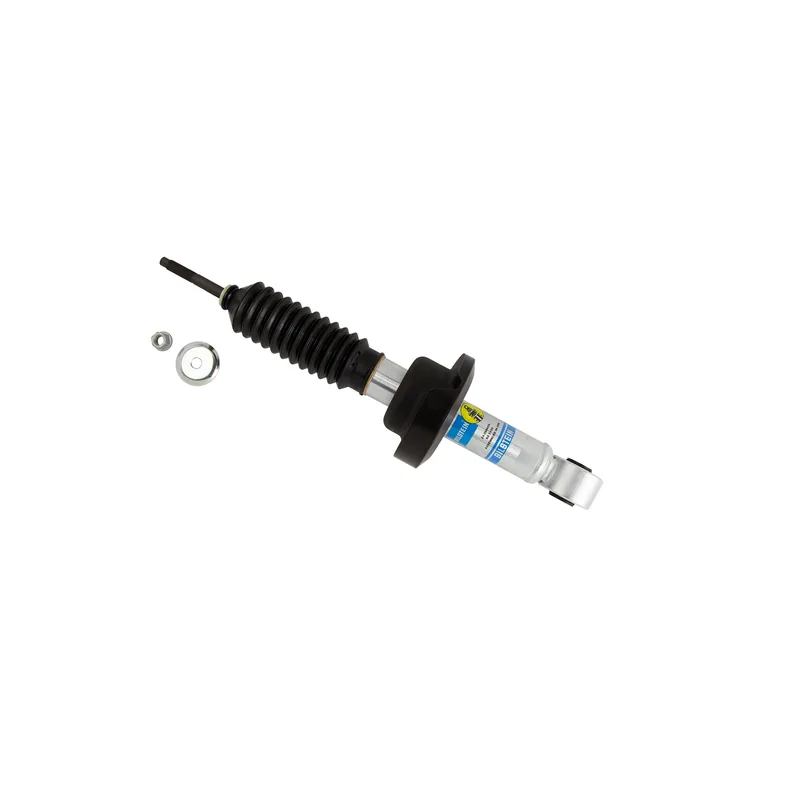

Bilstein 24-266659 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 54 × 11 × 11 cm, 5.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
41 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan TITAN XD | 2024 | PRO-4X, Platinum Reserve, SV | Front | All |
|
| Nissan TITAN XD | 2022–2023 | PRO-4X, Platinum Reserve, S, SV | Front | All |
|
| Nissan TITAN XD | 2020–2021 | PRO-4X, Platinum Reserve, S, SL, SV | Front | All |
|
| Nissan TITAN XD | 2016–2019 | PRO-4X | Front | All |
|
| Nissan TITAN XD | 2016–2019 | Platinum Reserve, S, SL, SV | Front | 4WD |
|
| Nissan TITAN XD | 2016–2019 | Platinum Reserve, S, SL, SV | Front | RWD · V8 5.0L |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.62
- Collapsed Length (in)
- 14.61
- Extended Length (mm)
- 473.0
- Collapsed Length (mm)
- 371.2
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 16mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 5.15
- Replacement Mounting Kit
- B4-KT1-Z352A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
