BetterB6 4600

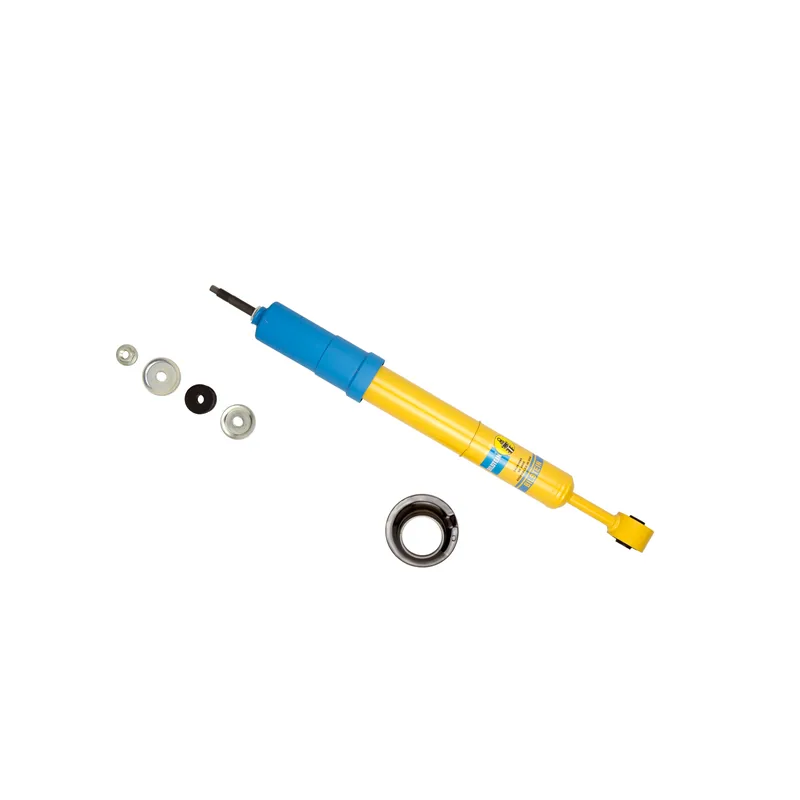

Bilstein 24-265966 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48510-8Z253, Toyota 48510-8Z254, Toyota 48510-8Z255, Toyota 48510-8Z359, Toyota 48510-8Z360, Toyota 48510-8Z447, Toyota 48510-8Z448
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 62 × 11 × 11 cm, 3.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
44 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2023 | Limited, SR, SR5, TRD Off-Road, TRD Sport, Trail Special Edition | Front | All | — |
| Toyota Tacoma | 2022 | Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Sport | Front | All | — |
| Toyota Tacoma | 2021 | Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Sport, Trail | Front | All | — |
| Toyota Tacoma | 2016–2020 | Limited, SR, SR5, TRD Off-Road, TRD Sport | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.80
- Collapsed Length (in)
- 17.60
- Extended Length (mm)
- 553.7
- Collapsed Length (mm)
- 447.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
- Replacement Mounting Kit
- B4-KT1-Z333A01
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
