BetterB8 5100

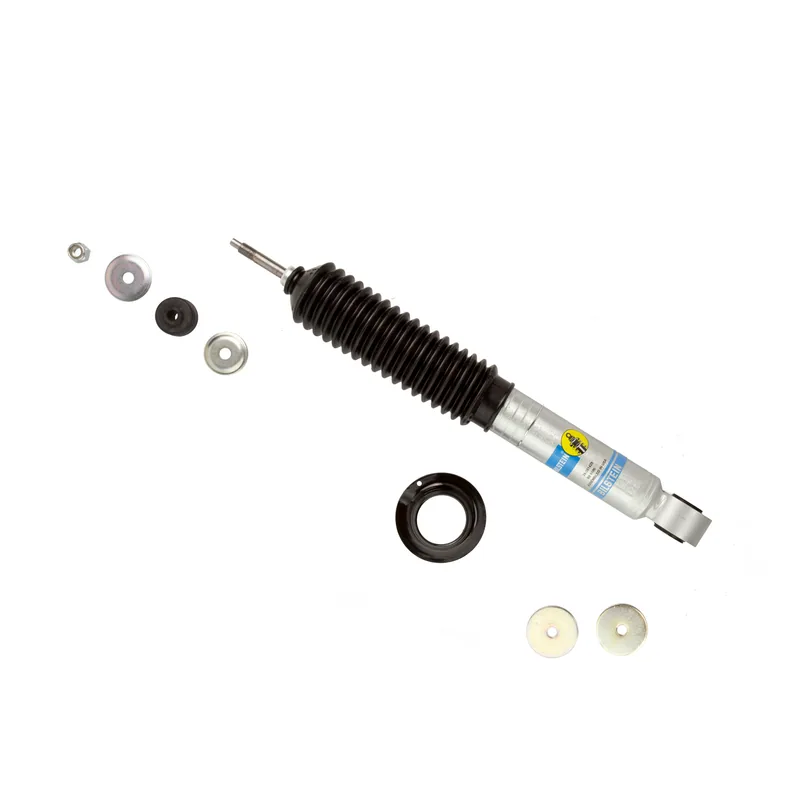

Bilstein 24-261425 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 53 × 11 × 11 cm, 3.4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

28 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Sequoia	Years	2001–2007	Submodels	Limited, SR5	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Check which applies
Toyota Sequoia	Years	2001–2007	Submodels	Limited, SR5	Position	Front	Drive / body / engine	RWD	Notes	Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Check which applies
Toyota Tundra	Years	2004–2006	Submodels	Limited, SR5	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Provides 0-1" Front Lift Provides 0-1.6" Front Lift Provides 0-2.5" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2004–2006	Submodels	Limited, SR5	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Provides 0-1" Front Lift Provides 0-1.6" Front Lift Provides 0-2.5" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2004–2006	Submodels	Limited, SR5	Position	Front	Drive / body / engine	RWD · Crew Cab Pickup	Notes	Provides 0-1" Front Lift Provides 0-1.6" Front Lift Provides 0-2.5" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2004–2006	Submodels	Limited, SR5	Position	Front	Drive / body / engine	RWD · Extended Cab Pickup	Notes	Provides 0-1" Front Lift Provides 0-1.6" Front Lift Provides 0-2.5" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2000–2003	Submodels	Limited	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-1" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2000–2003	Submodels	SR5	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Provides 0-1" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2000–2003	Submodels	Limited	Position	Front	Drive / body / engine	RWD	Notes	Provides 0-1" Front Lift Provides 0-2.65" Front Lift Check which applies
Toyota Tundra	Years	2000–2003	Submodels	SR5	Position	Front	Drive / body / engine	RWD · Extended Cab Pickup	Notes	Provides 0-1" Front Lift Provides 0-2.65" Front Lift Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 18.37
Collapsed Length (in): 13.23
Extended Length (mm): 466.7
Collapsed Length (mm): 336.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.4mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: Yes
Stroke/travel Length (in): 5.12
Replacement Mounting Kit: B4-KT1-Z219A03

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
