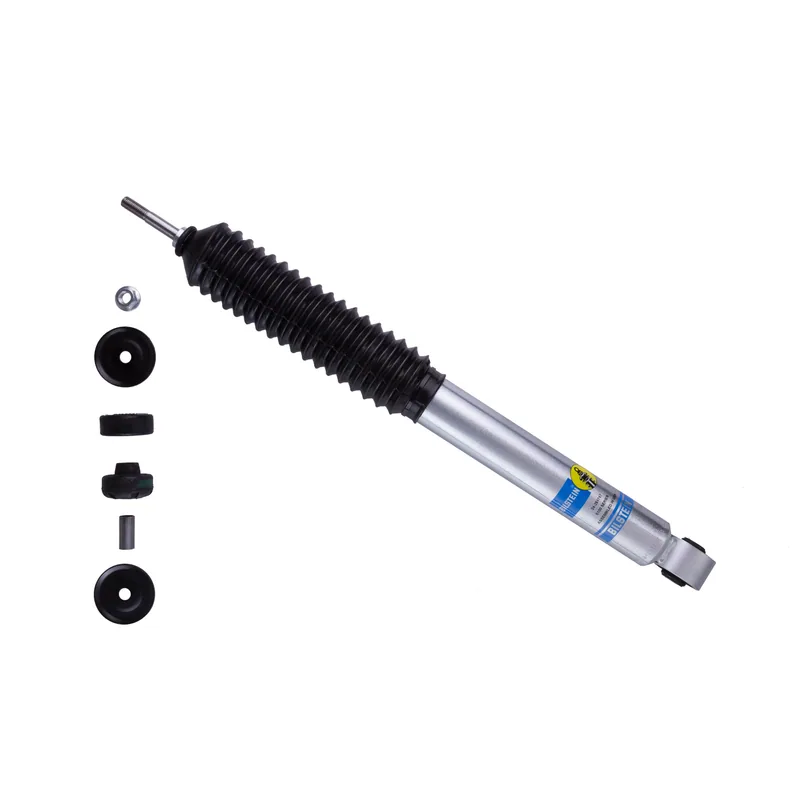

Bilstein 24-251747 B8 5100 Shock Absorber
BetterB8 5100

Bilstein 24-251747 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Mexico
Box
Ships in Bilstein's own box (about 64 × 11 × 11 cm, 2.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

84 vehicles, newest years first

Ram 35002023–2026Big HornFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002021–2026Laramie, Limited, Limited Longhorn, TradesmanFront4WD · Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002021–2026Laramie, Limited, Limited LonghornFront4WD · Mega Cab / Extended Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002022Big Horn, Lone StarFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002021Big HornFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002021Lone StarFront4WD · L6 6.7L
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002019–2020Big Horn, Laramie LonghornFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002019–2020Laramie, Limited, Lone Star, TradesmanFront4WD · Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002019–2020Laramie, Limited, Lone StarFront4WD · Mega Cab / Extended Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002018Big Horn, Laramie Longhorn, LimitedFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002014–2018Laramie, SLT, TradesmanFront4WD · Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002014–2018SLT, TradesmanFront4WD · Standard Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002013–2018Laramie, SLTFront4WD · Mega Cab / Extended Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002017Big Horn, Laramie Longhorn, Limited, Lone StarFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002016Big Horn, Laramie Longhorn, LimitedFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002014–2015Big Horn, Laramie Limited, Laramie Longhorn, Lone StarFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002013Big Horn, Laramie Longhorn, Lone StarFront4WD
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002013Laramie, SLT, ST, TradesmanFront4WD · Crew Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift
Ram 35002013SLT, ST, TradesmanFront4WD · Standard Cab Pickup
  • Fits Vehicles With 2-2.5" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in)
22.64
Collapsed Length (in)
15.04
Extended Length (mm)
575.0
Collapsed Length (mm)
382.0
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Eye 14.1mm
Body Design
Smooth Body (Non-Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
Black Bellows
Spring Seat Included
No
Stroke/travel Length (in)
7.60
Replacement Mounting Kit
B4-KT1-Z223A02

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
