BetterB8 5100

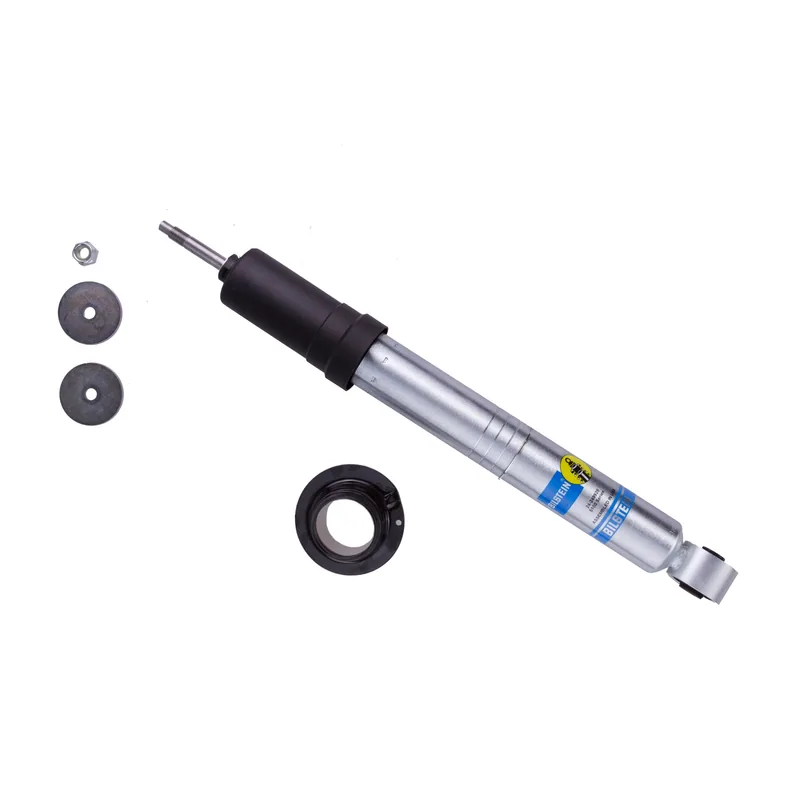

Bilstein 24-249928 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 54 × 11 × 11 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
24 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2001–2004 | Pre Runner | Front | All |
|
| Toyota Tacoma | 2001–2004 | Base | Front | 4WD · L4 2.7L |
|
| Toyota Tacoma | 2001–2004 | Base | Front | 4WD · V6 3.4L |
|
| Toyota Tacoma | 1998–2000 | Limited, Pre Runner | Front | All |
|
| Toyota Tacoma | 1998–2000 | Base, SR5 | Front | 4WD · L4 2.7L |
|
| Toyota Tacoma | 1998–2000 | Base, SR5 | Front | 4WD · V6 3.4L |
|
| Toyota Tacoma | 1996–1997 | SR5 | Front | All |
|
| Toyota Tacoma | 1996–1997 | Base | Front | 4WD · L4 2.7L |
|
| Toyota Tacoma | 1996–1997 | Base | Front | 4WD · V6 3.4L |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.66
- Collapsed Length (in)
- 13.86
- Extended Length (mm)
- 474.0
- Collapsed Length (mm)
- 352.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.80
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
