BetterB8 5100

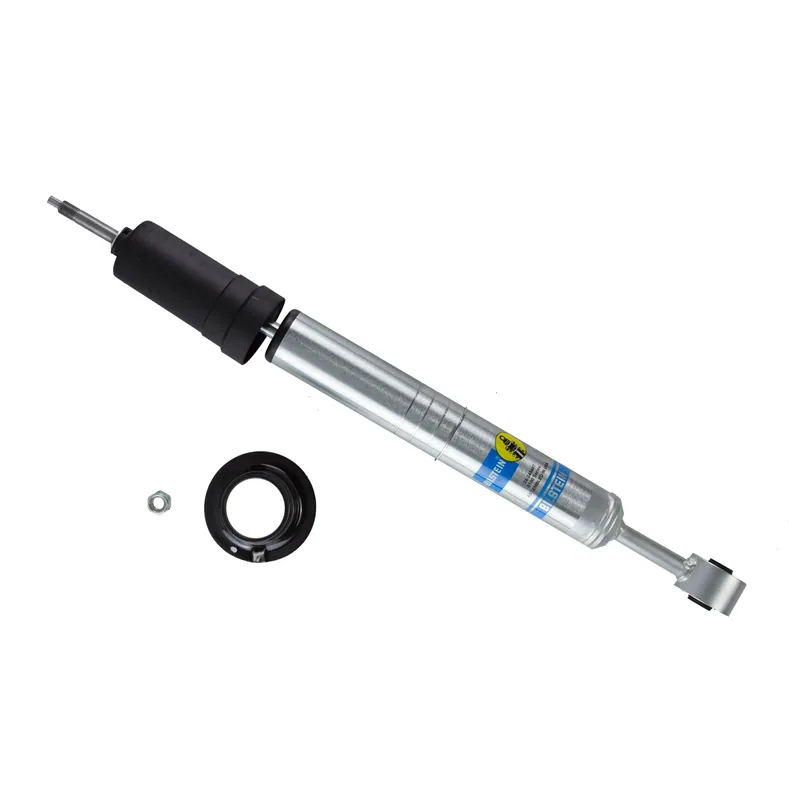

Bilstein 24-245487 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 64 × 11 × 11 cm, 2.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

45 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Hilux	Years	2025	Submodels	Base, DSL 48V Hybrid, DSL ADV 48V Hybrid, MLM, SR, TDI	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Fits Vehicles With 0-1" Rear Lift Provides 0-2.5" Front Lift Check which applies
Toyota Hilux	Years	2024	Submodels	Base, SR, TDI	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2023	Submodels	Cabina Sencilla	Position	Front	Drive / body / engine	Standard Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2021–2023	Submodels	Base, SR	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2013–2021	Submodels	Base	Position	Front	Drive / body / engine	Standard Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2019–2020	Submodels	Base, Doble Cab, SR	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2017–2018	Submodels	Doble Cab, SR	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2012–2016	Submodels	Base, SR	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2010–2011	Submodels	SR	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2006–2009	Submodels	Base	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2.5" Front Lift
Toyota Hilux	Years	2005–2006	Submodels	Base	Position	Front	Drive / body / engine	Standard Cab Pickup	Notes	Provides 0-2.5" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 22.59
Collapsed Length (in): 17.03
Extended Length (mm): 573.7
Collapsed Length (mm): 432.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.1mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Straight
Spring Seat Included: Yes
Stroke/travel Length (in): 5.55
Replacement Mounting Kit: B4-KT1-Z237A01

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
