BetterB6 4600

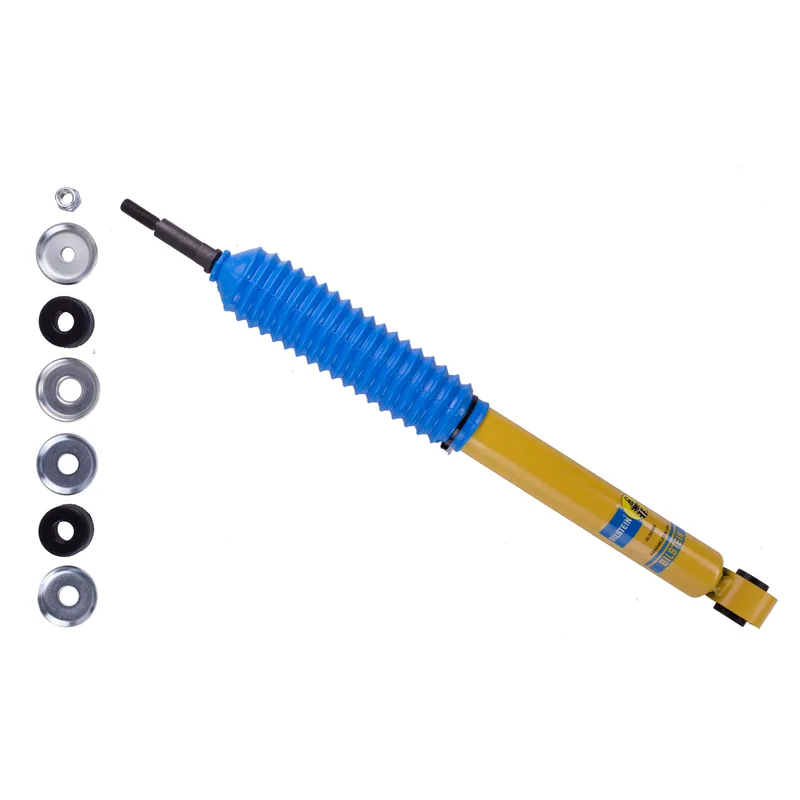

Bilstein 24-241656 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48530-80104, Toyota 48530-80105, Toyota 48530-80189, Toyota 48530-80190, Toyota 48530-A9100, Toyota 48530-A9110 and 6 more
Toyota 48530-A9170, Toyota 48530-A9180, Toyota 48530-A9460, Toyota 48530-A9470, Toyota 48530-A9480, Toyota 48530-A9490
- Replaces Bilstein
- 24-185813
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 67 × 11 × 11 cm, 3.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
14 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Sequoia | 2001–2007 | Limited, SR5 | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.96
- Collapsed Length (in)
- 15.06
- Extended Length (mm)
- 608.5
- Collapsed Length (mm)
- 382.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- 19.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Bellows
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z273A00
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
