Bilstein 24-239455 B8 5100 Shock Absorber
BetterB8 5100

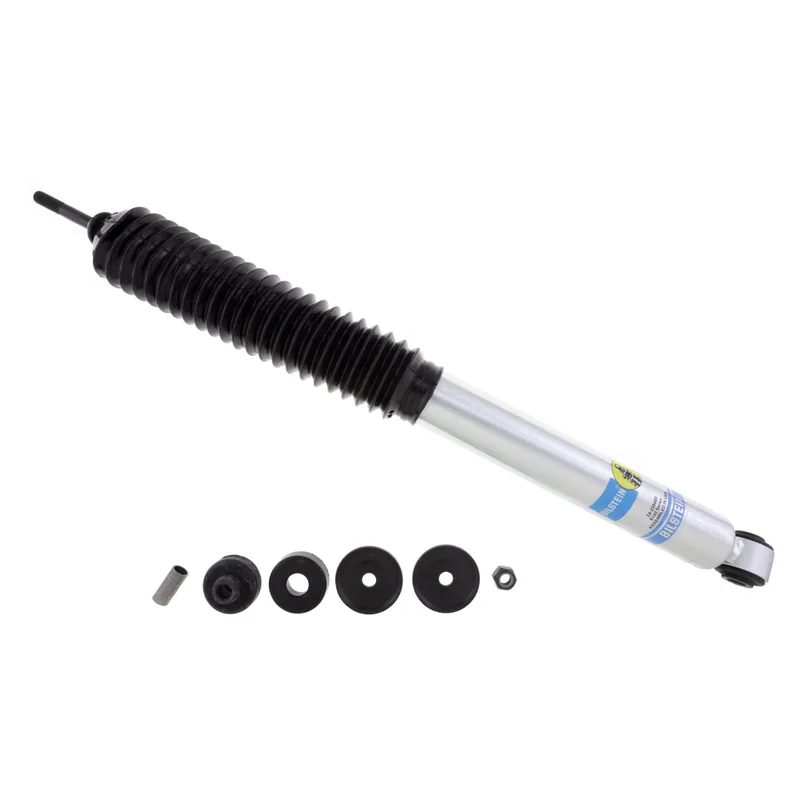

Bilstein 24-239455 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Mexico
Box
Ships in Bilstein's own box (about 70 × 11 × 11 cm, 2.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

35 vehicles, newest years first

Ram 25002016–2018Big Horn, Laramie, Laramie Longhorn, Limited, SLT, TradesmanRear4WD
  • Spring type: Front: Coil , Rear: Coil
  • Fits Vehicles With 0-1" Rear Lift
  • Without Air Leveling Suspension
  • Check which applies
Ram 25002014–2016OutdoorsmanRearAll
  • Spring type: Front: Coil , Rear: Coil
  • Fits Vehicles With 0-1" Rear Lift
  • Without Air Leveling Suspension
  • Check which applies
Ram 25002014–2015Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, TradesmanRear4WD
  • Spring type: Front: Coil , Rear: Coil
  • Fits Vehicles With 0-1" Rear Lift
  • Without Air Leveling Suspension
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
24.96
Collapsed Length (in)
16.75
Extended Length (mm)
634.0
Collapsed Length (mm)
425.5
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Eye 14.1mm
Body Design
Smooth Body (Non-Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
Black Bellows
Spring Seat Included
No
Stroke/travel Length (in)
8.21
Replacement Mounting Kit
B4-KT1-Z223A01

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
