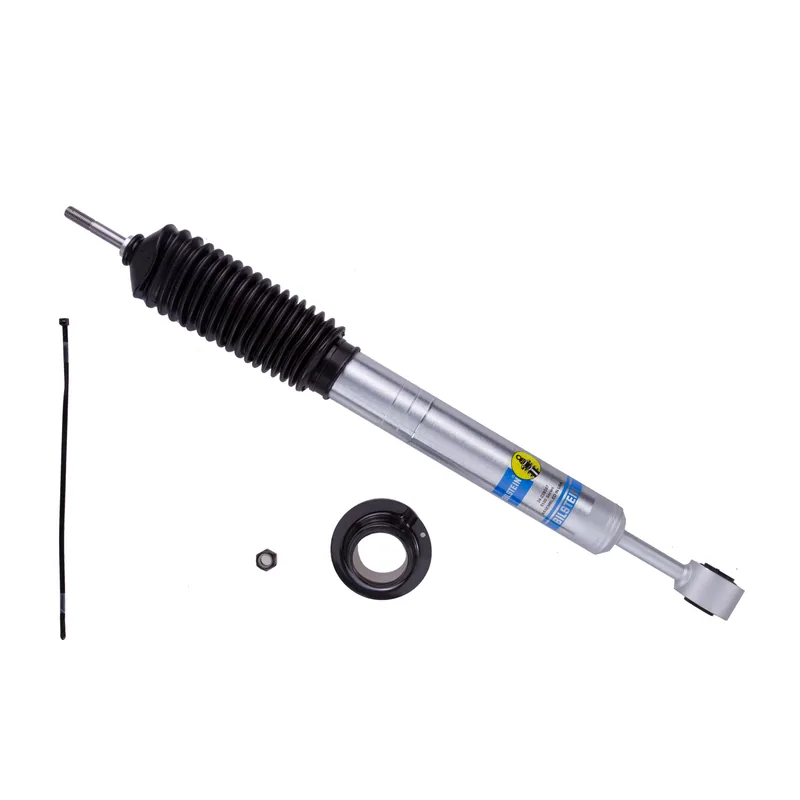

Bilstein 24-239387 B8 5100 Ride Height Adjustable Shock Absorber
BetterB8 5100

Bilstein 24-239387 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Replaces Bilstein
24-187275
Country of origin
Mexico
Box
Ships in Bilstein's own box (about 68 × 11 × 11 cm, 3.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

37 vehicles, newest years first

Toyota Sequoia2021–2022Limited, Nightshade, SR5, TRD SportFrontAll
  • Provides 0.87-2.5" Front Lift
Toyota Sequoia2020Limited, SR5, TRD SportFrontAll
  • Provides 0.87-2.5" Front Lift
Toyota Sequoia2018–2019Limited, SR5, TRD SportFrontAll
  • Provides 0.87-2.5" Front Lift
  • Provides 0.87-2.5" Front Lift
  • Without Self-Leveling or Electronic Suspension
  • Check which applies
Toyota Sequoia2008–2017Limited, SR5FrontAll
  • Provides 0.87-2.5" Front Lift
  • Without Self-Leveling or Electronic Suspension
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
24.32
Collapsed Length (in)
17.77
Extended Length (mm)
617.8
Collapsed Length (mm)
451.3
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Eye 16.4mm
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
Black Bellows
Spring Seat Included
Yes
Stroke/travel Length (in)
6.56
Replacement Mounting Kit
B4-KT1-Z243A01

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
