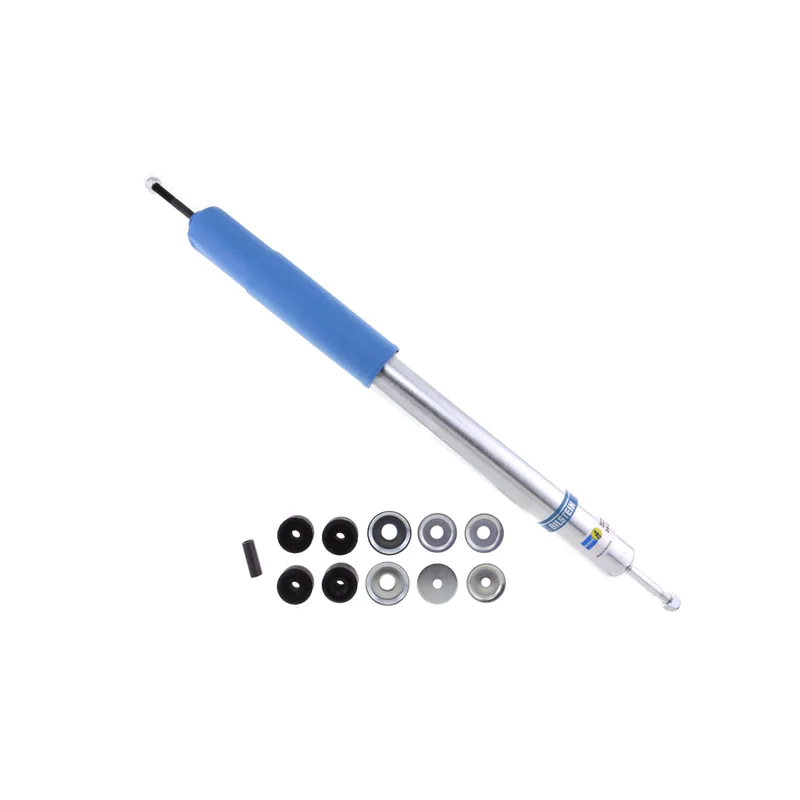

Bilstein 24-238878 B8 5100 Shock Absorber

Bilstein 24-238878 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 69 × 11 × 11 cm, 2.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

9 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Lexus LX450	Years	1996–1997	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Front Lift
Toyota Land Cruiser	Years	1991–1997	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 24.61
Collapsed Length (in): 14.96
Extended Length (mm): 625.0
Collapsed Length (mm): 380.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Stem
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Blue Straight
Spring Seat Included: No
Stroke/travel Length (in): 9.65
Replacement Mounting Kit: B4-KT1-Z017A01
Replacement Mounting Kit 2: B4-KT1-Z105A00

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF) Bilstein installation instructions 3 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
