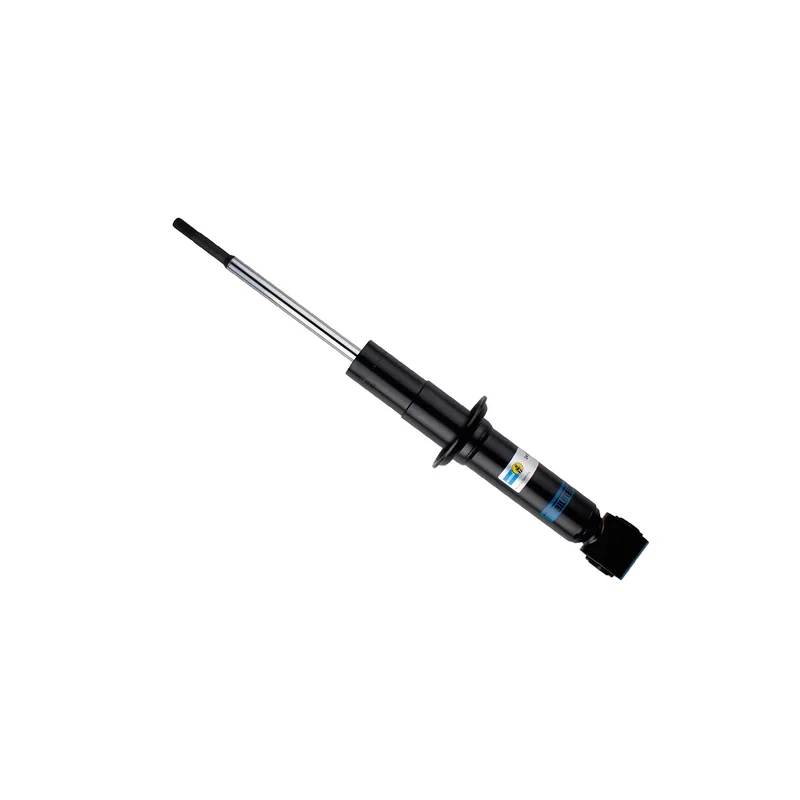

Bilstein 24-236584 B4 OE Replacement Air Air Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Land Rover LR0 16423, Land Rover LR0 16424, Land Rover LR016423, Land Rover LR016424, Land Rover RPM 500060, Land Rover RPM 500100 and 6 more
Land Rover RPM 500280, Land Rover RPM 500290, Land Rover RPM500060, Land Rover RPM500100, Land Rover RPM500280, Land Rover RPM500290
Country of origin: Germany
Box: Ships in Bilstein's own box (about 67 × 22 × 22 cm, 4.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

18 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Land Rover Range Rover Sport	Years	2013	Submodels	GT Limited Edition, HSE, HSE Lux	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies
Land Rover Range Rover Sport	Years	2012	Submodels	GT Limited Edition 3, HSE, HSE Lux	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies
Land Rover Range Rover Sport	Years	2011	Submodels	GT Limited Edition, HSE	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies
Land Rover Range Rover Sport	Years	2010	Submodels	HSE	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies
Land Rover Range Rover Sport	Years	2009	Submodels	HSE, Supercharged	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies
Land Rover Range Rover Sport	Years	2008	Submodels	HSE, LE, Supercharged	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies
Land Rover Range Rover Sport	Years	2006–2007	Submodels	HSE, Supercharged	Position	Rear	Drive / body / engine	All	Notes	Shock only - Requires use of Land Rover air bag and seal kit Without Electronic Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.22
Collapsed Length (in): 14.96
Extended Length (mm): 564.5
Collapsed Length (mm): 380.0
Upper Mount Type: Stem
Lower Mount Type: Eye 16.2mm
Internal Design: Monotube
Finish: Black Paint
Boot Included: No
Spring Seat Included: Yes - Fixed

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
