BetterB8 5100

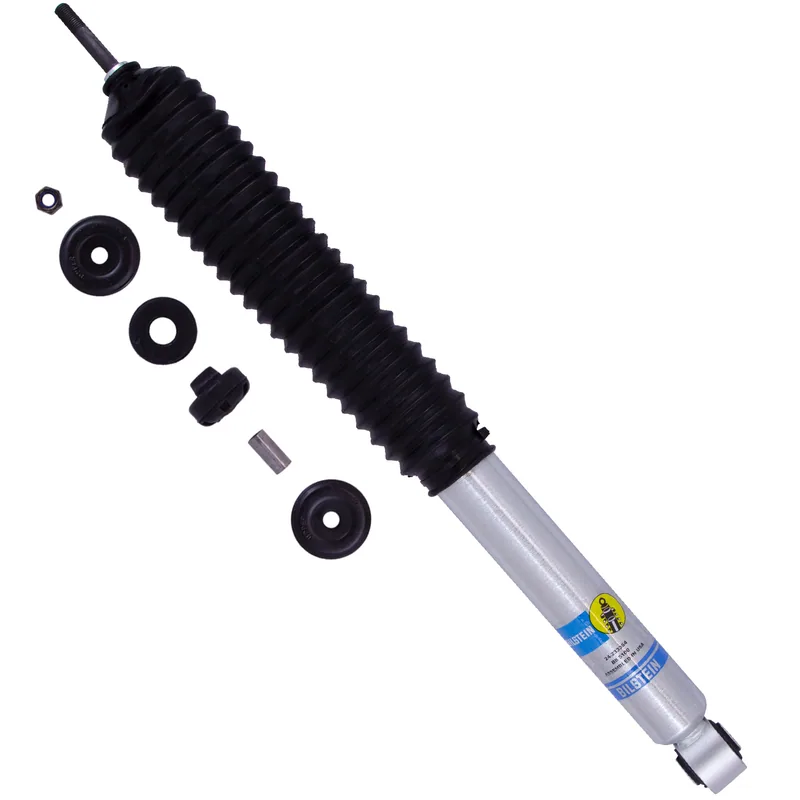

Bilstein 24-233354 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 71 × 11 × 11 cm, 3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

56 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 1500	Years	2026	Submodels	Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock	Position	Rear	Drive / body / engine	All	Notes	Fits non-Off Road Package Trucks with 0-2" Rear Lift Fits factory Off Road Package Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2025	Submodels	Big Horn, Laramie, Lone Star, Rebel, Tradesman, Tradesman HFE, Warlock	Position	Rear	Drive / body / engine	All	Notes	Fits non-Off Road Package Trucks with 0-2" Rear Lift Fits factory Off Road Package Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2024	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	All	Notes	Fits non-Off Road Package Trucks with 0-2" Rear Lift Fits factory Off Road Package Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks without factory Off Road Package and with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits non-Off Road Package Trucks with 0-2" Rear Lift Fits factory Off Road Package Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks without factory Off Road Package and with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2021–2022	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits non-Off Road Package Trucks with 0-2" Rear Lift Fits factory Off Road Package Trucks with 0-1" Rear Lift Without Air Leveling Suspension Fits Trucks without factory Off Road Package and with 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 1500	Years	2019–2020	Submodels	Big Horn, HFE, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits non-Off Road Package Trucks with 0-2" Rear Lift Fits factory Off Road Package Trucks with 0-1" Rear Lift Without Air Leveling Suspension Fits Trucks without factory Off Road Package and with 0-1" Rear Lift Without Air Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.43
Collapsed Length (in): 15.89
Extended Length (mm): 645.9
Collapsed Length (mm): 403.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.1mm
Body Design: Smooth Body (Non-coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 9.54
Replacement Mounting Kit: B4-KT1-Z223A01

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
