BetterB8 5100

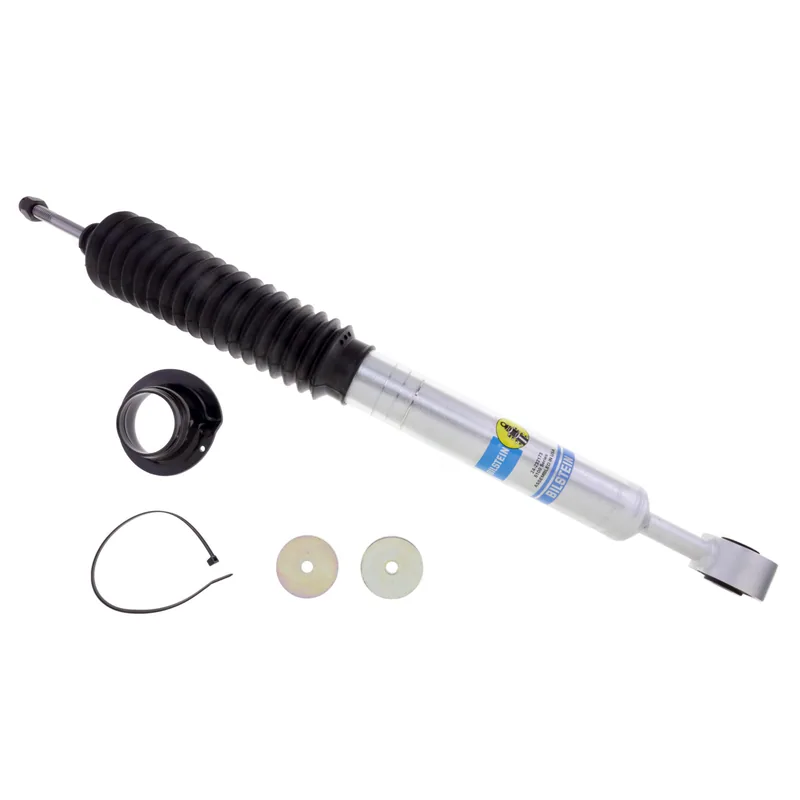

Bilstein 24-232173 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-186964
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 68 × 11 × 11 cm, 2.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
65 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tundra | 2021 | 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, Trail | Front | All |
|
| Toyota Tundra | 2014–2020 | 1794 Edition, Limited, Platinum, SR, SR5 | Front | All |
|
| Toyota Tundra | 2012–2013 | Base, Limited, Platinum | Front | All |
|
| Toyota Tundra | 2010–2011 | Base, Limited, Platinum, SR5 | Front | All |
|
| Toyota Tundra | 2007–2009 | Base, Limited, SR5 | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.35
- Collapsed Length (in)
- 17.77
- Extended Length (mm)
- 618.5
- Collapsed Length (mm)
- 451.3
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 16.4mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 6.44
- Replacement Mounting Kit
- B4-KT1-Z243A02
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
