BetterB8 5100

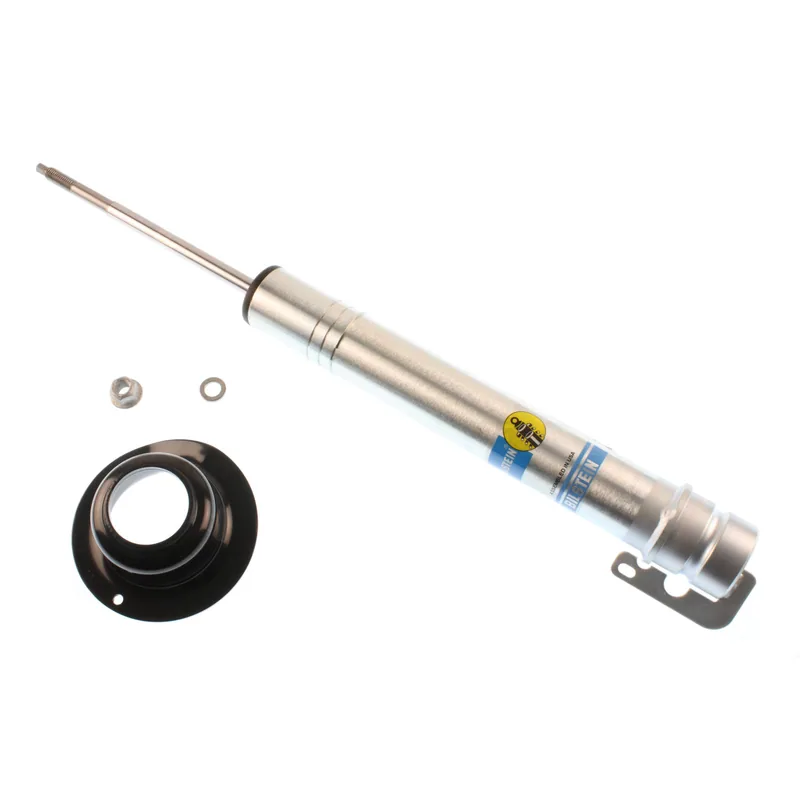

Bilstein 24-225793 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 55 × 11 × 11 cm, 3.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
17 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Grand Cherokee | 2010 | Laredo, Limited | Front | All |
|
| Jeep Grand Cherokee | 2007–2009 | Laredo, Limited, Overland | Front | All |
|
| Jeep Grand Cherokee | 2006 | 65th Anniversary Edition, Laredo, Limited, Overland | Front | All |
|
| Jeep Grand Cherokee | 2005 | Laredo, Limited | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.20
- Collapsed Length (in)
- 13.35
- Extended Length (mm)
- 487.7
- Collapsed Length (mm)
- 339.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 5.85
- Replacement Mounting Kit
- B4-KT1-Z296A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
