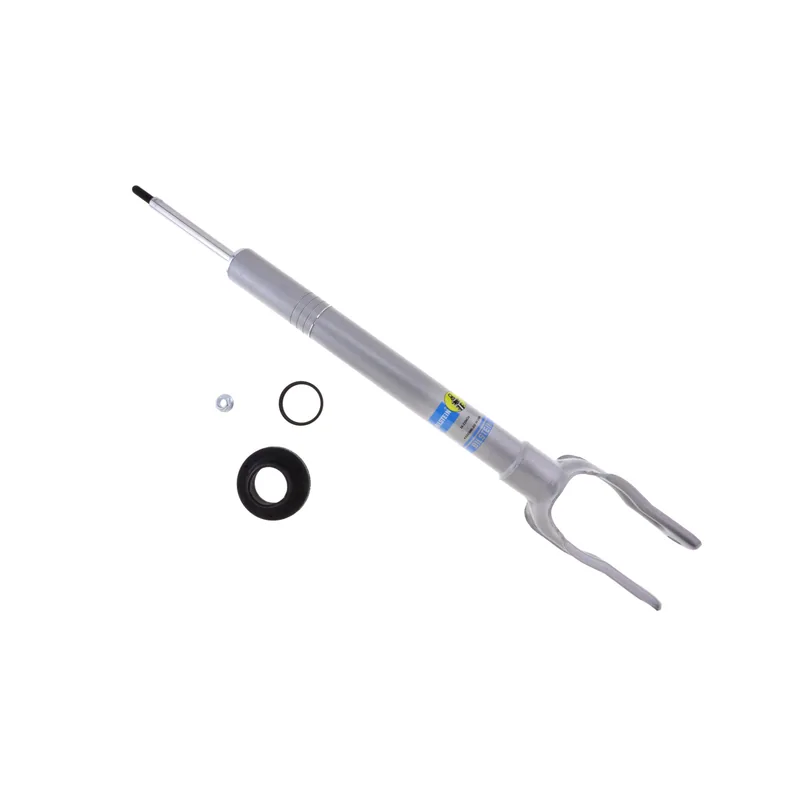

Bilstein 24-225434 B8 5100 Ride Height Adjustable Shock Absorber
BetterB8 5100

Bilstein 24-225434 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Country of origin
United States
Box
Ships in Bilstein's own box (about 88 × 11 × 11 cm, 4.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

35 vehicles, newest years first

Dodge Durango2014–2015Citadel, Limited, Rallye, SXTFrontRWD · V6 3.6L
  • Provides 0.6-2.1" Front Lift
Dodge Durango2012–2013Citadel, Crew, SXTFrontRWD · V6 3.6L
  • Provides 0.6-2.1" Front Lift
Dodge Durango2011Citadel, Crew, ExpressFrontRWD · V6 3.6L
  • Provides 0.6-2.1" Front Lift
Jeep Grand Cherokee2014–2015Overland, SummitFrontRWD
  • Provides 0.4-1.75" Front Lift
  • Without Air Leveling Suspension
  • Check which applies
Jeep Grand Cherokee2011–2015Laredo, LimitedFrontAll
  • Provides 0.4-1.75" Front Lift
  • Without Air Leveling Suspension
  • Check which applies
Jeep Grand Cherokee2013OverlandFrontRWD
  • Provides 0.4-1.75" Front Lift
  • Without Air Leveling Suspension
  • Check which applies
Jeep Grand Cherokee2012Overland, Overland SummitFrontRWD
  • Provides 0.4-1.75" Front Lift
  • Without Air Leveling Suspension
  • Check which applies
Jeep Grand Cherokee2011OverlandFrontRWD
  • Provides 0.4-1.75" Front Lift
  • Without Air Leveling Suspension
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
32.09
Collapsed Length (in)
26.28
Extended Length (mm)
815.0
Collapsed Length (mm)
667.6
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Clevis
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Silver Painted
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
5.80
Replacement Mounting Kit
B4-KT1-Z294A00

Installation & warranty

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
