BetterB6 Performance

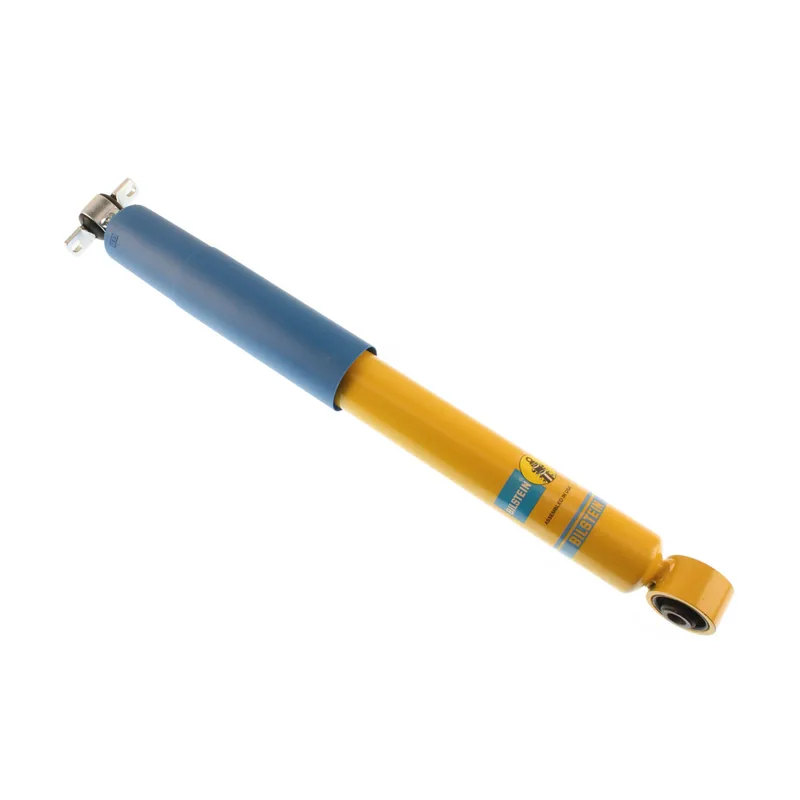

Bilstein 24-221948 B6 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 24-025706
Country of origin: Mexico
Box: Ships in Bilstein's own box (about 65 × 13 × 13 cm, 2.4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

291 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Express 2500	Years	2007–2023	Submodels	Base, LS, LT	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	2006	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	1996–2005	Submodels	Base, LS	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	2003	Submodels	Base, LS	Position	Rear	Drive / body / engine	RWD	Notes	Over GVWR: 7,300lbs
Chevrolet Express 3500	Years	2006–2023	Submodels	Base, LS, LT	Position	Rear	Drive / body / engine	All	Notes	Includes Class C Check which applies
Chevrolet Express 3500	Years	1996–2005	Submodels	Base, LS	Position	Rear	Drive / body / engine	All	Notes	Includes Class C Check which applies
GMC Savana 2500	Years	2007–2023	Submodels	Base, LS, LT	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2006	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2003–2005	Submodels	Base, SLE	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2003–2005	Submodels	Base	Position	Rear	Drive / body / engine	RWD	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2002	Submodels	Base, SLT	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2001	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	1996–2000	Submodels	Base, SLE	Position	Rear	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 3500	Years	2006–2023	Submodels	Base, LS, LT	Position	Rear	Drive / body / engine	All	Notes	Includes Class C Check which applies
GMC Savana 3500	Years	2003–2005	Submodels	Base, SLE	Position	Rear	Drive / body / engine	All	Notes	Includes Class C Check which applies
GMC Savana 3500	Years	2001–2002	Submodels	Base, SLT	Position	Rear	Drive / body / engine	All	Notes	Includes Class C Check which applies
GMC Savana 3500	Years	1996–2000	Submodels	Base, SLE	Position	Rear	Drive / body / engine	All	Notes	Includes Class C Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 23.23
Collapsed Length (in): 14.80
Extended Length (mm): 590.0
Collapsed Length (mm): 376.0
Upper Mount Type: Bar Pin
Lower Mount Type: Eye 14.1mm
Internal Design: Monotube
Finish: Yellow Paint
Boot Included: Blue Straight
Spring Seat Included: No
Chassis Manufacturer: General Motors
Chassis Model: Express/Savana
Chassis Model - Extended: 4500
Chassis Class: C
Chassis Year Range: 2003-2021
Application Note 1: General Motors Express/Savana 3500 (1997-2006)
Position: Rear

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
