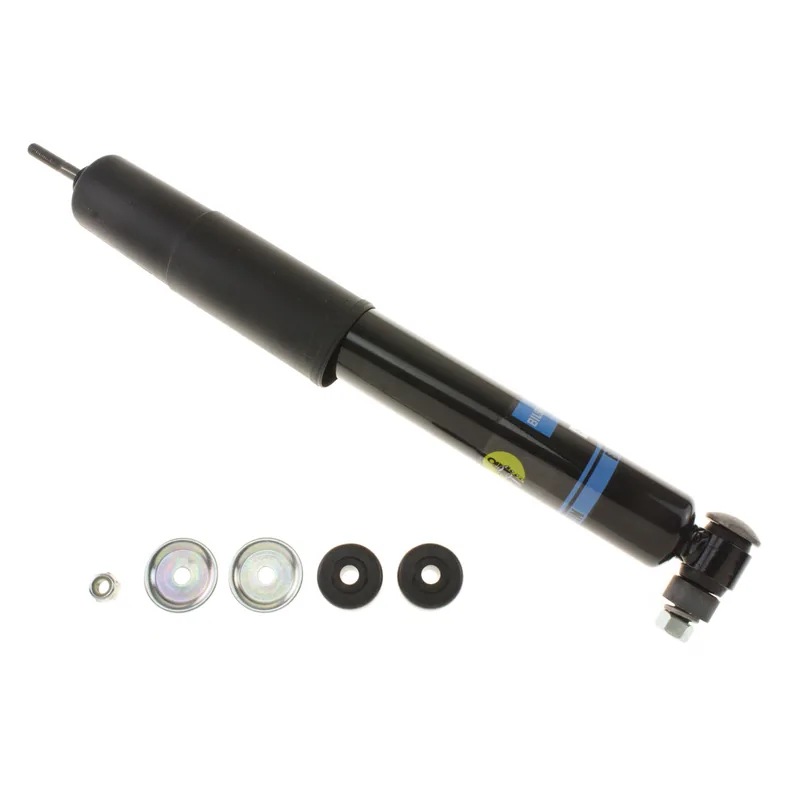

Bilstein 24-221481 Drag Series Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 54 × 11 × 11 cm, 2.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
18 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Camaro | 1969 | Base, SS, Z28 | Rear | All |
|
| Chevrolet Camaro | 1968 | Base | Rear | All |
|
| Chevrolet Camaro | 1967 | Base, RS, SS, Z28 | Rear | All |
|
| Pontiac Firebird | 1969 | 350, 350 HO, 400, Base, Sprint, Trans Am | Rear | All |
|
| Pontiac Firebird | 1968 | 350, 400, Base, Sprint | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.66
- Collapsed Length (in)
- 11.69
- Extended Length (mm)
- 474.0
- Collapsed Length (mm)
- 297.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Cantilever
- Internal Design
- Monotube
- Finish
- Black Paint
- Boot Included
- Black Straight
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z097A00
- Racing Type
- Drag Race
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
