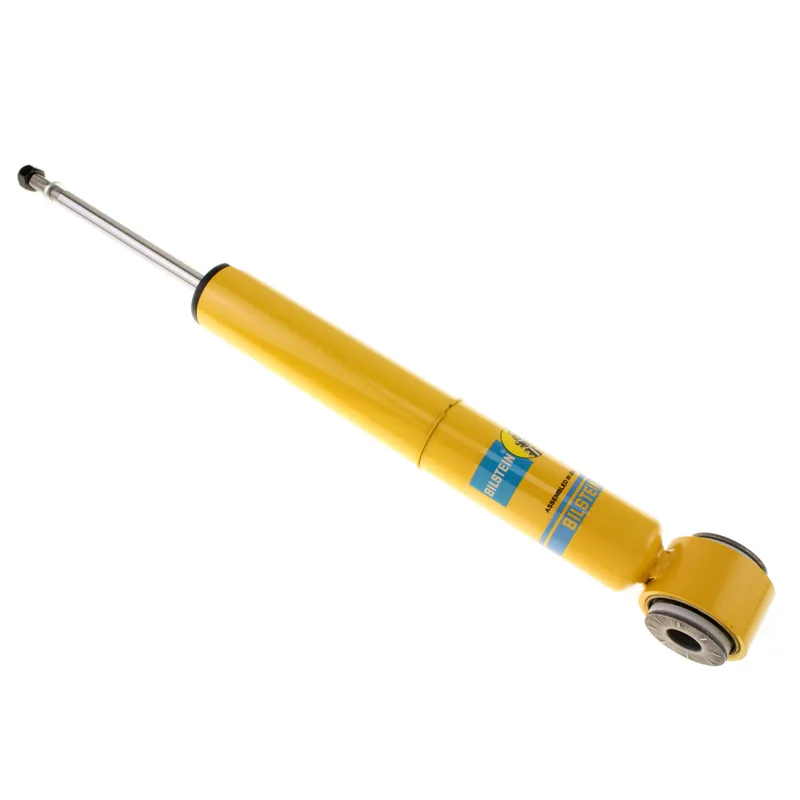

Bilstein 24-197724 B6 4600 Shock Absorber
Sold each · 2 per axle
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Ford 7L1Z 18125-AA, Ford 7L1Z 18125-CA, Ford 7L1Z 18125-CC, Ford 7L1Z 18125-CF, Ford 7L1Z 18125-CH, Ford 7L1Z 18125-D and 24 more
Ford 7L1Z 18125-DC, Ford 7L1Z 18125-DD, Ford 7L1Z 18125-DL, Ford 7L1Z 18125-DM, Ford 7L1Z 18125-DN, Ford 7L1Z 18125-DR, Ford 7L1Z 18125-FA, Ford 7L1Z 18125-HA, Ford 7L1Z 18125-LA, Ford 7L1Z 18125-MA, Ford 7L1Z 18125-NA, Ford 7L1Z 18125-P, Ford 8L1Z 18125-B, Ford 8L1Z 18125-C, Ford 8L1Z 18125-CF, Ford 8L1Z 18125-CH, Ford 8L1Z 18125-DL, Ford 8L1Z 18125-DN, Ford 8L1Z 18125-H, Ford 8L1Z 18125-J, Ford 8L1Z 18125-K, Ford AL1Z 18125-A, Ford AL1Z 18125-D, Ford AL1Z 18125-F
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 60 × 11 × 11 cm, 2.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
69 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Expedition | 2011–2013 | EL King Ranch, EL Limited, EL XL, King Ranch, Limited, XL | Rear | All |
|
| Ford Expedition | 2009–2013 | EL XLT, XLT | Rear | All |
|
| Ford Expedition | 2008–2010 | EL Eddie Bauer, EL King Ranch, EL Limited, Eddie Bauer, King Ranch, Limited | Rear | All |
|
| Ford Expedition | 2008 | EL XLT, Funkmaster Flex Edition, XLT | Rear | All |
|
| Ford Expedition | 2007 | EL Eddie Bauer, EL Limited, EL XLT, Eddie Bauer, Limited, XLT | Rear | All |
|
| Lincoln Navigator | 2008–2012 | Base, L | Rear | All |
|
| Lincoln Navigator | 2007 | L Luxury, L Ultimate, Luxury, Ultimate | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.21
- Collapsed Length (in)
- 15.00
- Extended Length (mm)
- 538.7
- Collapsed Length (mm)
- 381.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 20.3mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No - Reuse OEM
- Replacement Mounting Kit
- B4-KT1-Z293A00
Installation & warranty
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
