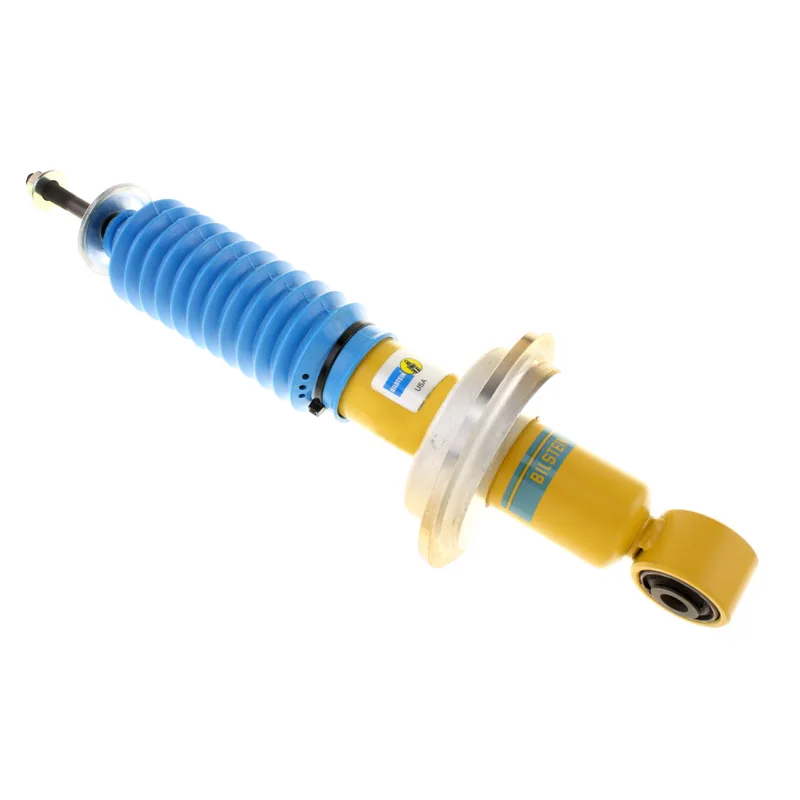

Bilstein 24-197656 B6 4600 Shock Absorber
Sold each · 2 per axle
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
INFINITI 56110-7S625, INFINITI 56110-7S626, INFINITI 56110-ZC025, INFINITI 56110-ZC085, INFINITI E6110-ZQ00C, INFINITI E6110-ZQ20C and 33 more
INFINITI E6110-ZZ50A, INFINITI E6110-ZZ50B, INFINITI E6110-ZZ51A, INFINITI E6110-ZZ51B, Nissan 56110-7S025, Nissan 56110-7S026, Nissan 56110-7S125, Nissan 56110-7S126, Nissan 56110-7S225, Nissan 56110-7S226, Nissan 56110-7S325, Nissan 56110-7S326, Nissan 56110-ZC085, Nissan 56110-ZR50A, Nissan E6110-9FE0A, Nissan E6110-9FE0B, Nissan E6110-9FE1B, Nissan E6110-9FE4A, Nissan E6110-9FE4B, Nissan E6110-9FG0A, Nissan E6110-ZQ00C, Nissan E6110-ZQ20C, Nissan E6110-ZR00A, Nissan E6110-ZR00B, Nissan E6110-ZR01B, Nissan E6110-ZR40A, Nissan E6110-ZR40B, Nissan E6110-ZR50A, Nissan E6110-ZR51A, Nissan E6110-ZZ50A, Nissan E6110-ZZ50B, Nissan E6110-ZZ51A, Nissan E6110-ZZ51B
- Replaces Bilstein
- 24-116237
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 46 × 11 × 11 cm, 3.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
83 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| INFINITI QX56 | 2004–2010 | Base | Front | All | — |
| Nissan Armada | 2011–2015 | Platinum, SL, SV | Front | All | — |
| Nissan Armada | 2010 | Platinum, SE, Titanium | Front | All | — |
| Nissan Armada | 2007–2009 | LE, SE | Front | All | — |
| Nissan Armada | 2005–2006 | LE, SE, SE Off-Road | Front | All | — |
| Nissan Pathfinder Armada | 2004 | LE, SE | Front | All | — |
| Nissan TITAN | 2011–2015 | PRO-4X, S, SL, SV | Front | All | — |
| Nissan TITAN | 2008–2010 | LE, PRO-4X, SE, XE | Front | All | — |
| Nissan TITAN | 2004–2007 | LE, SE, XE | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 15.37
- Collapsed Length (in)
- 11.13
- Extended Length (mm)
- 390.5
- Collapsed Length (mm)
- 282.7
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Bellows
- Spring Seat Included
- Yes
- Replacement Mounting Kit
- B4-KT1-Z361A00
