BetterB8 5100

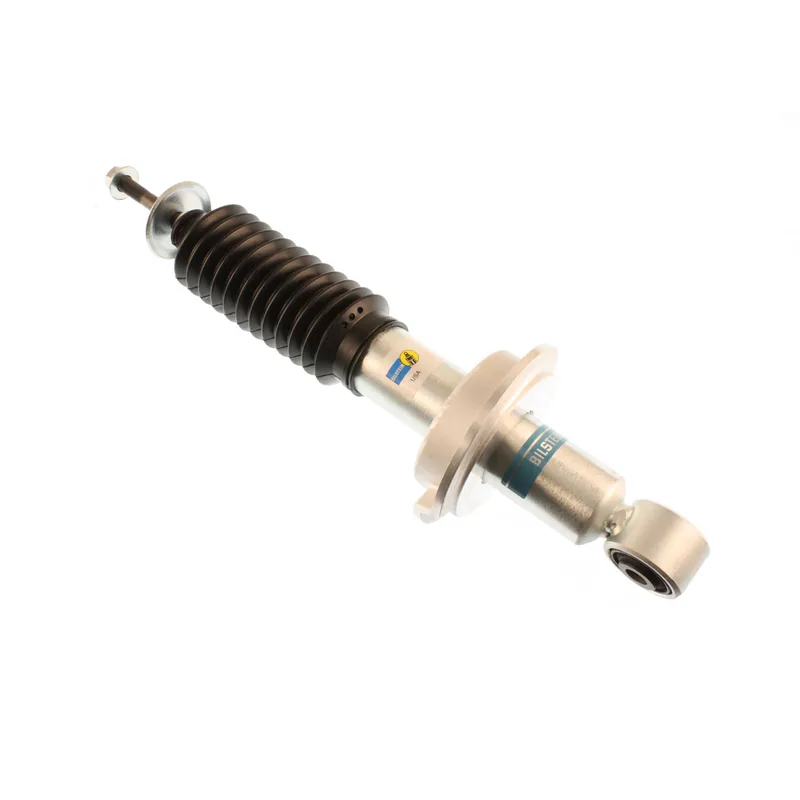

Bilstein 24-197649 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-186759
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 46 × 11 × 11 cm, 3.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
83 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| INFINITI QX56 | 2004–2010 | Base | Front | All |
|
| Nissan Armada | 2011–2015 | Platinum, SL, SV | Front | All |
|
| Nissan Armada | 2010 | Platinum, SE, Titanium | Front | All |
|
| Nissan Armada | 2007–2009 | LE, SE | Front | All |
|
| Nissan Armada | 2005–2006 | LE, SE, SE Off-Road | Front | All |
|
| Nissan Pathfinder Armada | 2004 | LE, SE | Front | All |
|
| Nissan TITAN | 2011–2015 | PRO-4X, S, SL, SV | Front | All |
|
| Nissan TITAN | 2008–2010 | LE, PRO-4X, SE, XE | Front | All |
|
| Nissan TITAN | 2004–2007 | LE, SE, XE | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 15.43
- Collapsed Length (in)
- 11.19
- Extended Length (mm)
- 392.0
- Collapsed Length (mm)
- 284.2
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.24
- Replacement Mounting Kit
- B4-KT1-Z361A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
