BetterB8 5100

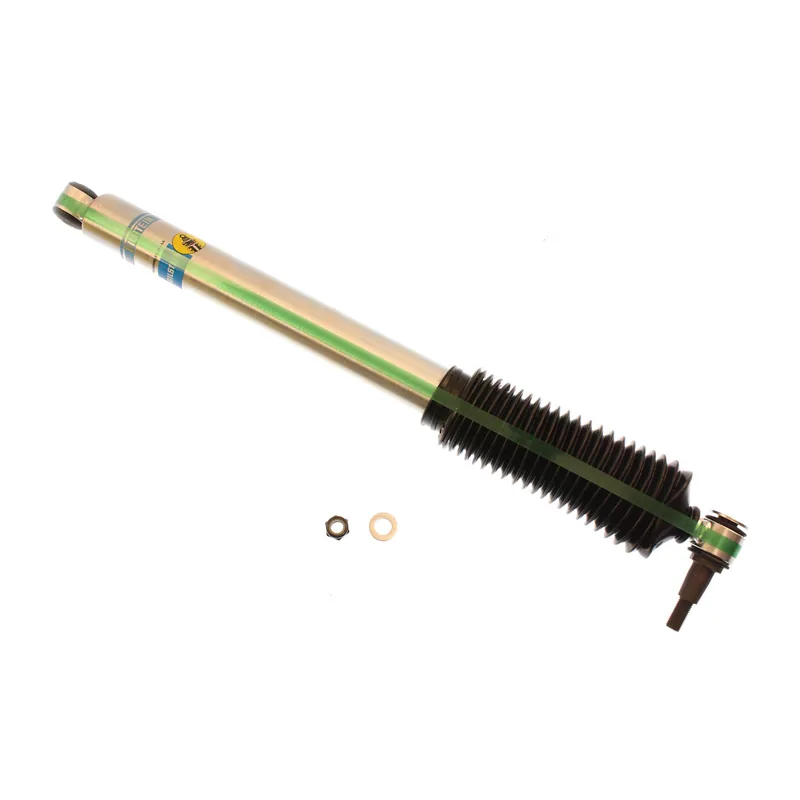

Bilstein 24-196284 B8 5100 Steering Damper Steering Damper
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 76 × 11 × 11 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
94 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford F-250 Super Duty | 2013–2016 | Platinum | Front | All | — |
| Ford F-250 Super Duty | 2008–2016 | King Ranch, Lariat, XL, XLT | Front | 4WD | — |
| Ford F-250 Super Duty | 2010 | Cabelas, Harley-Davidson Edition | Front | All | — |
| Ford F-250 Super Duty | 2009 | Cabelas, FX4, Harley-Davidson Edition | Front | All | — |
| Ford F-250 Super Duty | 2008 | FX4, Harley-Davidson Edition | Front | All | — |
| Ford F-350 Super Duty | 2013–2016 | King Ranch, Platinum | Front | 4WD | — |
| Ford F-350 Super Duty | 2008–2016 | Lariat, XL, XLT | Front | 4WD · Crew Cab Pickup | — |
| Ford F-350 Super Duty | 2008–2016 | Lariat, XL, XLT | Front | 4WD · Extended Cab Pickup | — |
| Ford F-350 Super Duty | 2008–2016 | XL, XLT | Front | 4WD · Standard Cab Pickup | — |
| Ford F-350 Super Duty | 2008–2012 | King Ranch | Front | 4WD | — |
| Ford F-350 Super Duty | 2010 | Cabelas, Harley-Davidson Edition | Front | All | — |
| Ford F-350 Super Duty | 2009 | Cabelas, FX4, Harley-Davidson Edition | Front | All | — |
| Ford F-350 Super Duty | 2008 | FX4, Harley-Davidson Edition | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 27.44
- Collapsed Length (in)
- 19.13
- Extended Length (mm)
- 697.0
- Collapsed Length (mm)
- 486.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Eye 12mm
- Lower Mount Type
- Cantilever
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Boot Included
- Black Bellows
- Stroke/travel Length (in)
- 8.31
- Replacement Mounting Kit
- B4-KT1-Z279A00
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
