BetterB6 4600

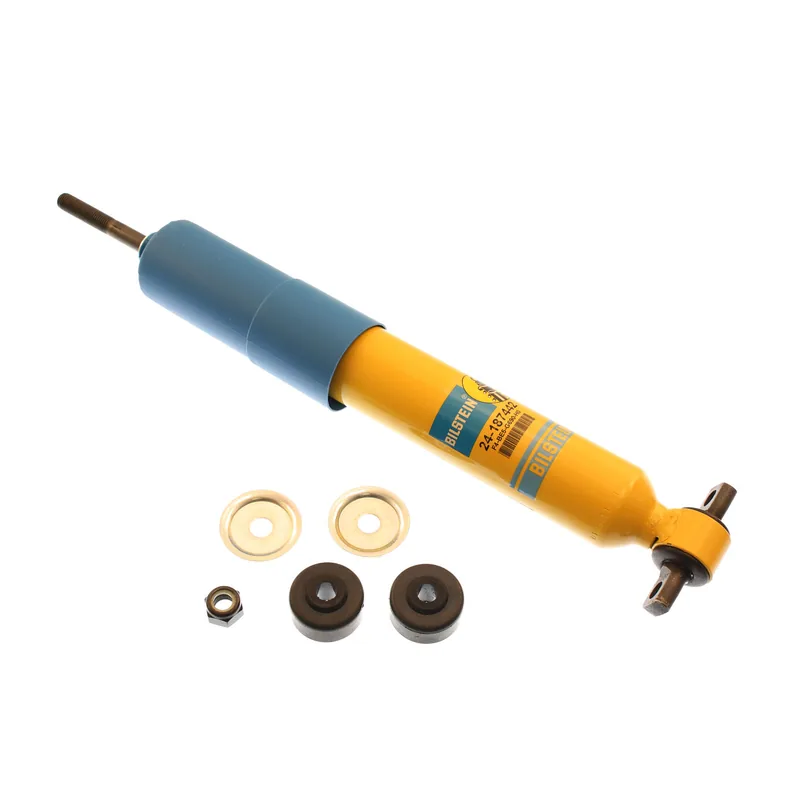

Bilstein 24-187442 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Ford 3L3Z 18124-AA, Ford XL3Z 18124-CA
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 44 × 13 × 13 cm, 1.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
6 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford F-150 | 1999–2003 | Lightning | Front | All | — |
| Ford F-150 Heritage | 2004 | SVT Lightning | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 14.76
- Collapsed Length (in)
- 10.02
- Extended Length (mm)
- 375.0
- Collapsed Length (mm)
- 254.5
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Bar Pin
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z103A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
