BetterB6 Performance

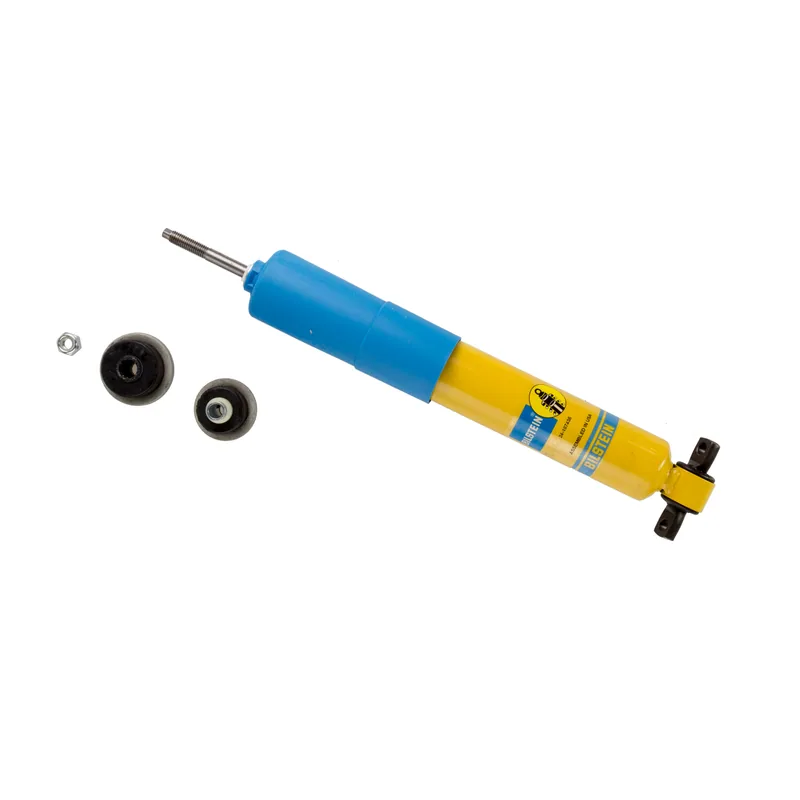

Bilstein 24-187435 B6 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Chevrolet 19257310, Chevrolet 23296352, Chevrolet 84020673, Chevrolet 84040778, Chevrolet 84040779, Chevrolet 84040780 and 6 more
Chevrolet 84303233, Chevrolet 84303234, Chevrolet 84334623, Chevrolet 84334624, Chevrolet 84334625, Chevrolet 88982652
Country of origin: Mexico
Box: Ships in Bilstein's own box (about 43 × 13 × 13 cm, 2.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

236 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Express 2500	Years	2007–2023	Submodels	Base, LS, LT	Position	Front	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	2006	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	2004–2005	Submodels	Base	Position	Front	Drive / body / engine	RWD	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	2003–2005	Submodels	Base, LS	Position	Front	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
Chevrolet Express 2500	Years	2003	Submodels	Base, LS	Position	Front	Drive / body / engine	RWD	Notes	Over GVWR: 7,300lbs
Chevrolet Express 3500	Years	2006–2023	Submodels	Base, LS, LT	Position	Front	Drive / body / engine	All	Notes	Includes Class C Check which applies
Chevrolet Express 3500	Years	2003–2005	Submodels	Base, LS	Position	Front	Drive / body / engine	All	Notes	Includes Class C Check which applies
GMC Savana 2500	Years	2007–2023	Submodels	Base, LS, LT	Position	Front	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2006	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2003–2005	Submodels	Base, SLE	Position	Front	Drive / body / engine	All	Notes	Over GVWR: 7,300lbs
GMC Savana 2500	Years	2003–2005	Submodels	Base	Position	Front	Drive / body / engine	RWD	Notes	Over GVWR: 7,300lbs
GMC Savana 3500	Years	2013–2023	Submodels	Base, LS, LT	Position	Front	Drive / body / engine	All	Notes	Includes Class C Check which applies
GMC Savana 3500	Years	2006–2012	Submodels	Base, LS, LT	Position	Front	Drive / body / engine	All	Notes	Includes Class C
GMC Savana 3500	Years	2003–2005	Submodels	Base, SLE	Position	Front	Drive / body / engine	All	Notes	Includes Class C

Specifications

As Bilstein publishes them.

Extended Length (in): 14.43
Collapsed Length (in): 9.92
Extended Length (mm): 366.5
Collapsed Length (mm): 252.0
Upper Mount Type: Stem
Lower Mount Type: Bar Pin
Internal Design: Monotube
Finish: Yellow Paint
Boot Included: Black Straight
Spring Seat Included: No
Replacement Mounting Kit: B4-BOA-0000172
Chassis Manufacturer: General Motors
Chassis Model: Express/Savana
Chassis Model - Extended: 4500
Chassis Class: C
Chassis Year Range: 2003-2021
Application Note 1: General Motors Express/Savana 3500 (2003-2016)
Position: Front

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
