BetterB6 4600

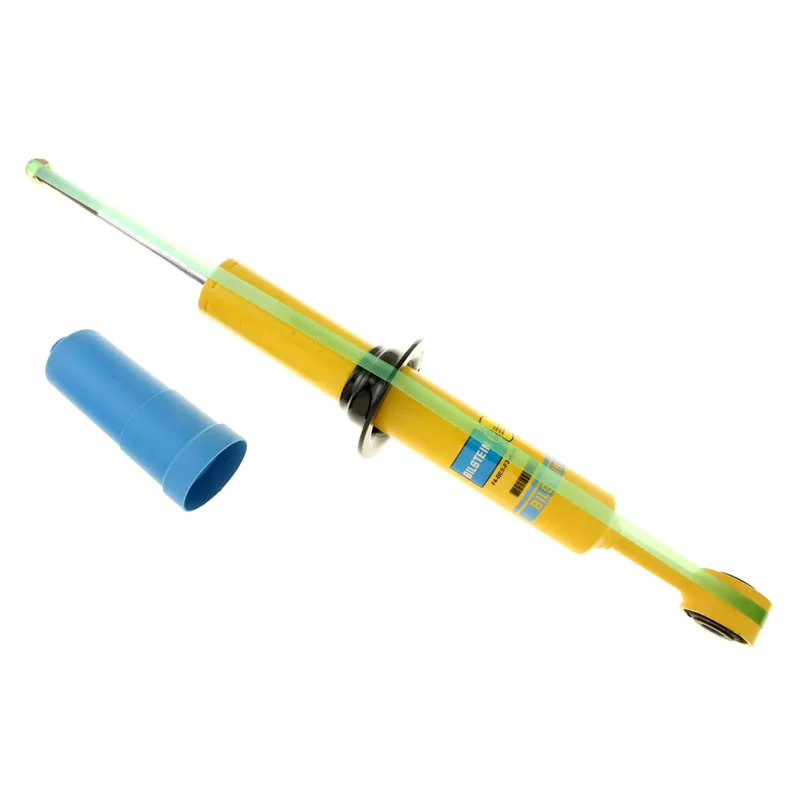

Bilstein 24-187251 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48510-09S60, Toyota 48510-09S61, Toyota 48510-09S70, Toyota 48510-09S71, Toyota 48510-34010, Toyota 48510-34040
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 66 × 11 × 11 cm, 3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
37 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Sequoia | 2021–2022 | Limited, Nightshade, SR5, TRD Sport | Front | All | — |
| Toyota Sequoia | 2020 | Limited, SR5, TRD Sport | Front | All | — |
| Toyota Sequoia | 2018–2019 | Limited, SR5, TRD Sport | Front | All |
|
| Toyota Sequoia | 2008–2017 | Limited, SR5 | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.55
- Collapsed Length (in)
- 17.62
- Extended Length (mm)
- 598.2
- Collapsed Length (mm)
- 447.5
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 16.4mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
