BetterB8 5100

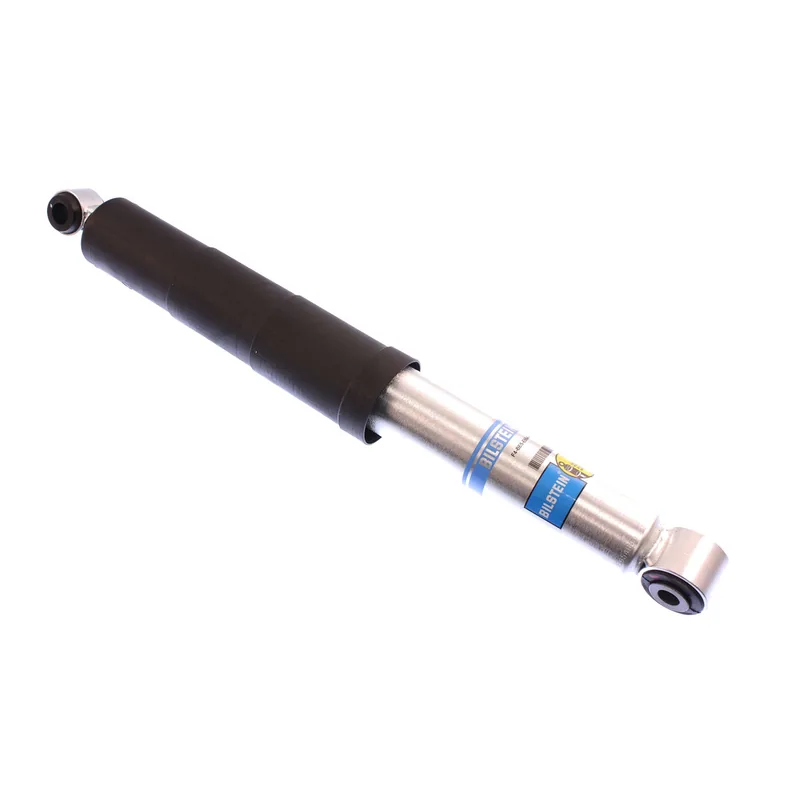

Bilstein 24-187060 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 57 × 11 × 11 cm, 2.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
29 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan Xterra | 2011–2015 | S, X | Rear | RWD |
|
| Nissan Xterra | 2007–2010 | S, SE, X | Rear | RWD |
|
| Nissan Xterra | 2006 | Off-Road, S, SE, X | Rear | RWD |
|
| Nissan Xterra | 2005 | Off-Road, S, SE | Rear | RWD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.06
- Collapsed Length (in)
- 12.81
- Extended Length (mm)
- 509.5
- Collapsed Length (mm)
- 325.3
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 16mm
- Lower Mount Type
- Eye 14mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 7.25
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
