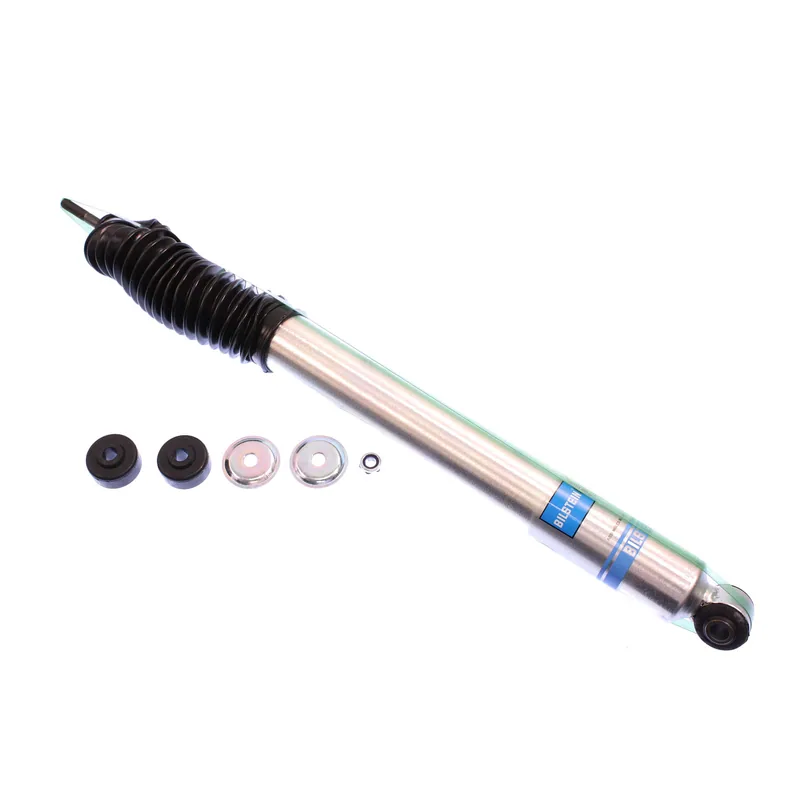

Bilstein 24-186995 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 76 × 11 × 11 cm, 2.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

76 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Jeep Wrangler	Years	2017	Submodels	Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3.5-5" Front Lift With Short Arm Lift Kit Check which applies
Jeep Wrangler	Years	2016	Submodels	Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3.5-5" Front Lift With Short Arm Lift Kit Check which applies
Jeep Wrangler	Years	2013–2015	Submodels	Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3.5-5" Front Lift With Short Arm Lift Kit Check which applies
Jeep Wrangler	Years	2011–2012	Submodels	Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 4" Front Lift With Short Arm Lift Kit Check which applies
Jeep Wrangler	Years	2010	Submodels	Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 4" Front Lift With Short Arm Lift Kit Check which applies
Jeep Wrangler	Years	2007–2009	Submodels	Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 4" Front Lift With Short Arm Lift Kit Check which applies
Jeep Wrangler JK	Years	2018	Submodels	Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3.5-5" Front Lift With Short Arm Lift Kit Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 27.56
Collapsed Length (in): 16.41
Extended Length (mm): 700.0
Collapsed Length (mm): 416.8
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 12.1mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 11.15
Replacement Mounting Kit: B4-KT1-Z097A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
