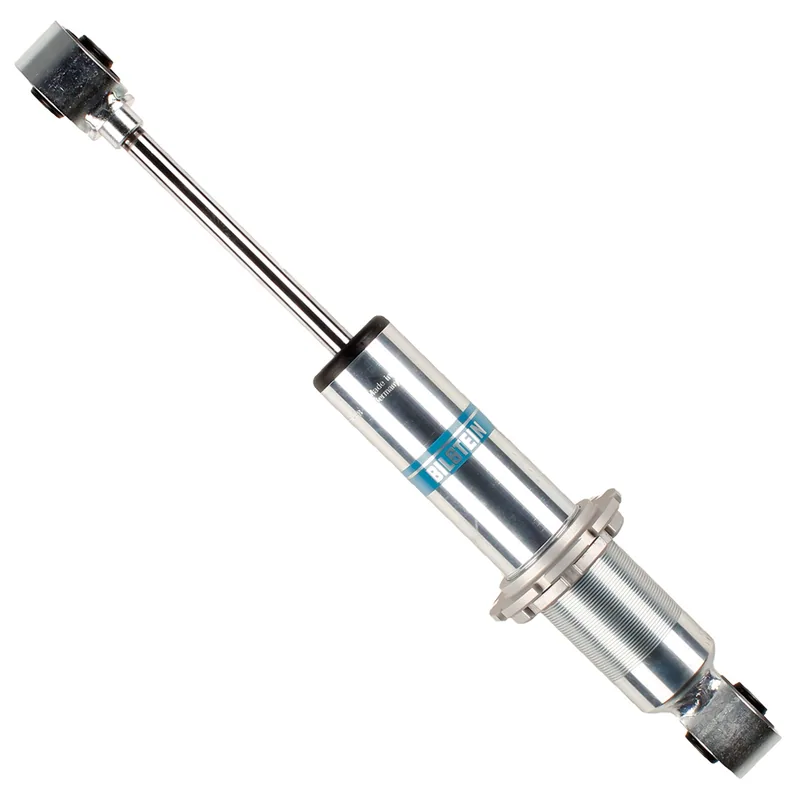

Bilstein 24-186520 M 7100 Classic Coilover Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 53 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.22
- Collapsed Length (in)
- 12.34
- Extended Length (mm)
- 463.0
- Collapsed Length (mm)
- 313.5
- Piston Diameter
- 46mm
- Upper Mount Type
- Eye 14.2mm
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Threaded Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Spring Seat Included
- Lower
- Stroke/travel Length (in)
- 5.90
- Compression @0.52m/s
- 965
- Rebound @0.52m/s
- 3030
- Mount Type
- Eye-to-Eye
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 14.0
- Spring Hardware
- Single Rate (2.5in)
- Valving Type
- Medium
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 6
- Collapsed Length (in) Incremental
- 12-12.99
- Extended Length (in) Incremental
- 18-18.99
Installation & warranty
Bilstein installation instructions (PDF)
Limited 90-Day Warranty
100% genuine Bilstein, from authorized North American distribution.
