BetterB6 4600

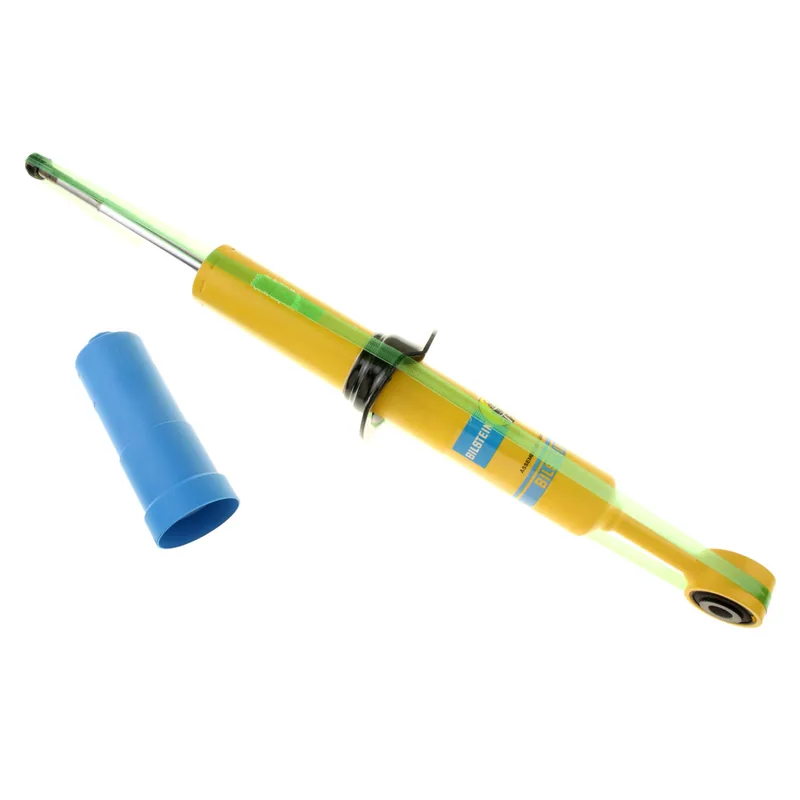

Bilstein 24-186230 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48510-09Q50, Toyota 48510-09Q70, Toyota 48510-09Q80, Toyota 48510-09Q90, Toyota 48510-09Q92, Toyota 48510-09Q93 and 9 more
Toyota 48510-09Q94, Toyota 48510-09Q95, Toyota 48510-09Q97, Toyota 48510-09Q98, Toyota 48510-09R10, Toyota 48510-09R20, Toyota 48510-09R30, Toyota 48510-8Z162, Toyota 48510-8Z362
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 66 × 11 × 11 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
65 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tundra | 2021 | 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, Trail | Front | All | — |
| Toyota Tundra | 2014–2020 | 1794 Edition, Limited, Platinum, SR, SR5 | Front | All | — |
| Toyota Tundra | 2012–2013 | Base, Limited, Platinum | Front | All | — |
| Toyota Tundra | 2010–2011 | Base, Limited, Platinum, SR5 | Front | All | — |
| Toyota Tundra | 2007–2009 | Base, Limited, SR5 | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.55
- Collapsed Length (in)
- 17.62
- Extended Length (mm)
- 598.2
- Collapsed Length (mm)
- 447.5
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 16.4mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
