BetterB8 5100

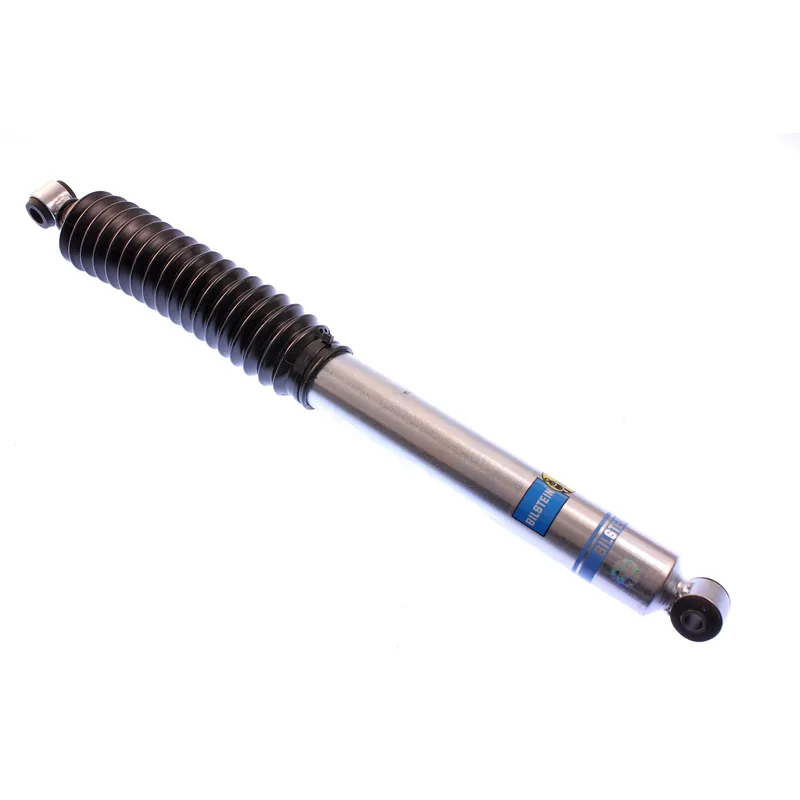

Bilstein 24-186223 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 69 × 11 × 11 cm, 2.4 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
21 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Grand Cherokee | 1998 | 5.9 Limited, Laredo, Limited, TSi | Rear | All |
|
| Jeep Grand Cherokee | 1997 | Laredo, Limited, Orvis, TSi | Rear | All |
|
| Jeep Grand Cherokee | 1996 | Laredo, Limited | Rear | All |
|
| Jeep Grand Cherokee | 1995 | Laredo, Limited, Orvis, SE | Rear | All |
|
| Jeep Grand Cherokee | 1994 | Laredo, Limited, SE | Rear | All |
|
| Jeep Grand Cherokee | 1993 | Base, Laredo, Limited | Rear | All |
|
| Jeep Grand Wagoneer | 1993 | Base | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.59
- Collapsed Length (in)
- 15.48
- Extended Length (mm)
- 624.5
- Collapsed Length (mm)
- 393.3
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 16mm
- Lower Mount Type
- Eye 12.2mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.11
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
