BetterB6 4600

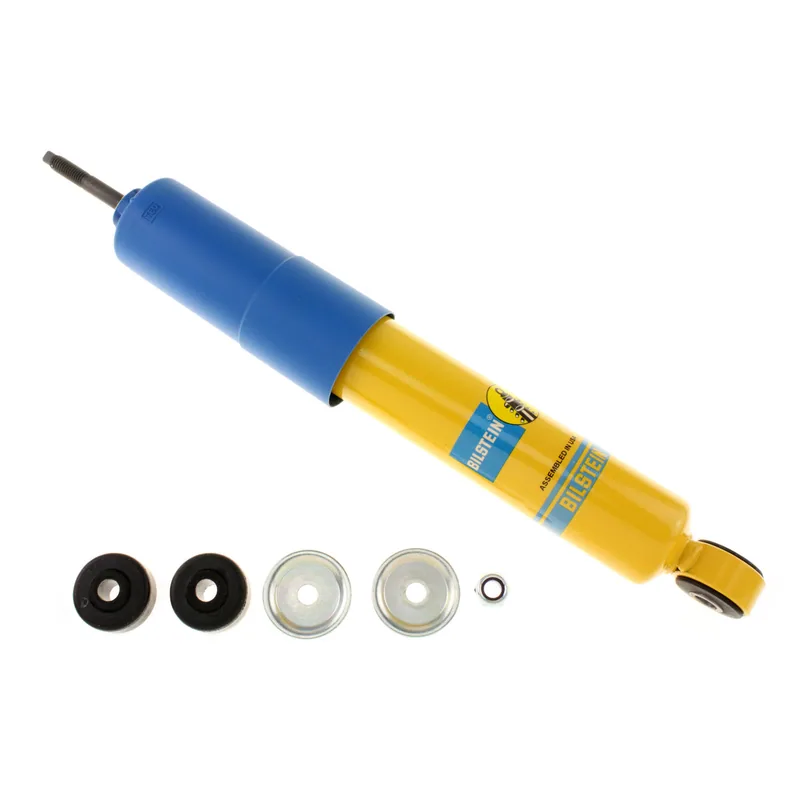

Bilstein 24-186162 B6 4600 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Chevrolet 15106253, Chevrolet 19153639, Chevrolet 19153640, Chevrolet 19206741, Chevrolet 89058936, Chevrolet 89058939 and 13 more
General Motors 15106253, General Motors 19153639, General Motors 19153640, General Motors 19206741, General Motors 89058936, General Motors 89058939, GMC 15106253, GMC 19153639, GMC 19153640, GMC 19206741, GMC 20931002, GMC 89058936, GMC 89058939
Country of origin: Mexico
Box: Ships in Bilstein's own box (about 44 × 11 × 11 cm, 2.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

66 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Colorado	Years	2009–2012	Submodels	LT, WT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
Chevrolet Colorado	Years	2006–2008	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
Chevrolet Colorado	Years	2005	Submodels	Z85, Z85 LS	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
Chevrolet Colorado	Years	2004–2005	Submodels	Z71, Z71 LS	Position	Front	Drive / body / engine	All	Notes	—
Chevrolet Colorado	Years	2004	Submodels	Base, LS, Z85, Z85 LS	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
GMC Canyon	Years	2009–2012	Submodels	SLE, SLT, WT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
GMC Canyon	Years	2006–2008	Submodels	SL, SLE, SLT, WT	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
GMC Canyon	Years	2005	Submodels	Z85 SL, Z85 SLE	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
GMC Canyon	Years	2004–2005	Submodels	Z71 Fleet, Z71 SL, Z71 SLE	Position	Front	Drive / body / engine	All	Notes	—
GMC Canyon	Years	2004	Submodels	SL, SLE, Z85 SL, Z85 SLE	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
Isuzu i-350	Years	2006	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	—
Isuzu i-370	Years	2008	Submodels	LS	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Torsion Bar , Rear: Leaf
Isuzu i-370	Years	2007	Submodels	LS	Position	Front	Drive / body / engine	All	Notes	—

Specifications

As Bilstein publishes them.

Extended Length (in): 14.65
Collapsed Length (in): 9.76
Extended Length (mm): 372.0
Collapsed Length (mm): 247.8
Body Diameter (od): 2.0 in.
Upper Mount Type: Stem
Lower Mount Type: Eye 12mm
Internal Design: Monotube
Finish: Yellow Paint
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Straight
Spring Seat Included: No
Replacement Mounting Kit: B4-KT1-Z097A00

Installation & warranty

Bilstein installation instructions (PDF) Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
