BetterB6 4600

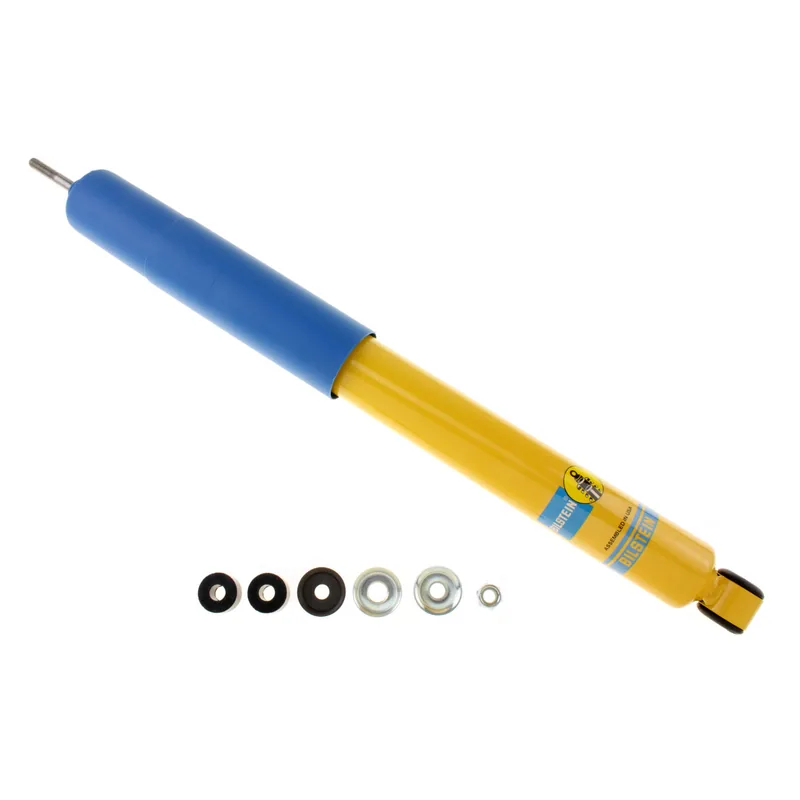

Bilstein 24-186056 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48530-09B50, Toyota 48530-09Q40, Toyota 48530-09Q92, Toyota 48530-A9340, Toyota 48530-A9680
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 65 × 11 × 11 cm, 2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
22 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2005–2015 | Pre Runner | Rear | All | — |
| Toyota Tacoma | 2005–2015 | Base | Rear | 4WD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.94
- Collapsed Length (in)
- 13.98
- Extended Length (mm)
- 582.7
- Collapsed Length (mm)
- 355.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 12mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z008A00
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
