BetterB8 5100

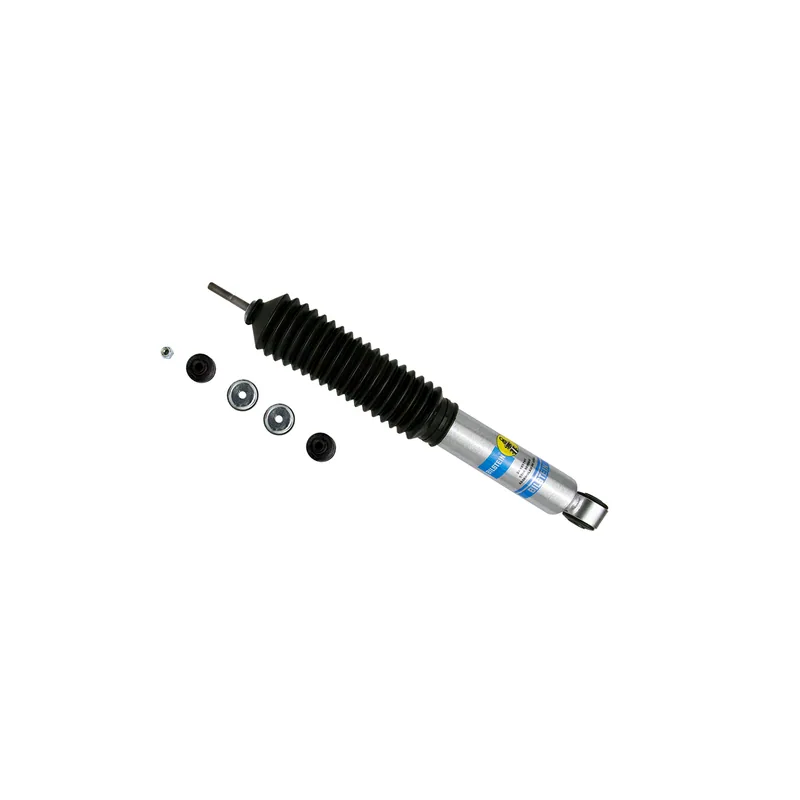

Bilstein 24-185745 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 52 × 11 × 11 cm, 2.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

41 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota 4Runner	Years	1990–1995	Submodels	SR5	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4" Front Lift
Toyota 4Runner	Years	1986–1989	Submodels	DLX, SR5	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1991–1995	Submodels	DLX, SR5	Position	Front	Drive / body / engine	4WD	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1990	Submodels	SR5	Position	Front	Drive / body / engine	4WD	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1990	Submodels	DLX	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1990	Submodels	DLX	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1989	Submodels	DLX, SR5	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1988–1989	Submodels	DLX, SR5	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1986–1988	Submodels	Base, DLX, SR5	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1986–1987	Submodels	Base Turbo	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4" Front Lift
Toyota Pickup	Years	1986–1987	Submodels	DLX, SR5, SR5 Turbo	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Fits Vehicles With 3-4" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 17.95
Collapsed Length (in): 11.67
Extended Length (mm): 456.0
Collapsed Length (mm): 296.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 16mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 6.28
Replacement Mounting Kit: B4-KT1-Z136A00

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)
