BetterB8 5100

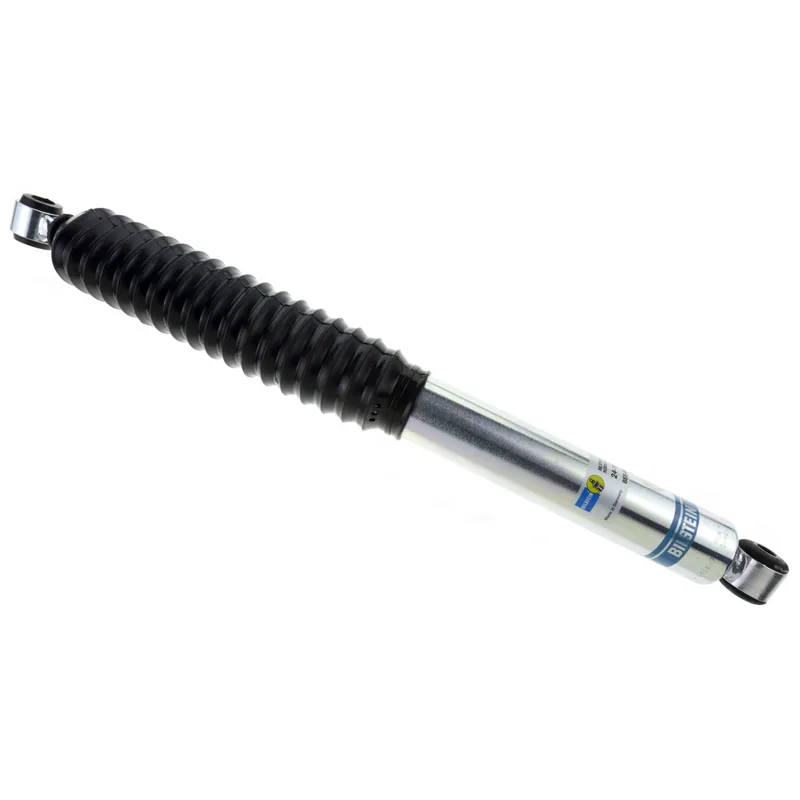

Bilstein 24-185660 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-064583
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 67 × 11 × 11 cm, 2.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
38 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Wrangler | 1995 | Rio Grande, SE, Sahara | Rear | All |
|
| Jeep Wrangler | 1994 | Renegade, S, SE, Sahara | Rear | All |
|
| Jeep Wrangler | 1993 | Base, Renegade, S, Sahara | Rear | All |
|
| Jeep Wrangler | 1991–1992 | Base, Islander, Renegade, S, Sahara | Rear | All |
|
| Jeep Wrangler | 1989–1990 | Base, Islander, Laredo, Sahara | Rear | All |
|
| Jeep Wrangler | 1988 | Base, Islander, Laredo, S, Sahara, Sport | Rear | All |
|
| Jeep Wrangler | 1987 | Base, Laredo, Sport | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.68
- Collapsed Length (in)
- 14.63
- Extended Length (mm)
- 601.5
- Collapsed Length (mm)
- 371.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 16mm
- Lower Mount Type
- Eye 12.7mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.05
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
