BetterB8 5100

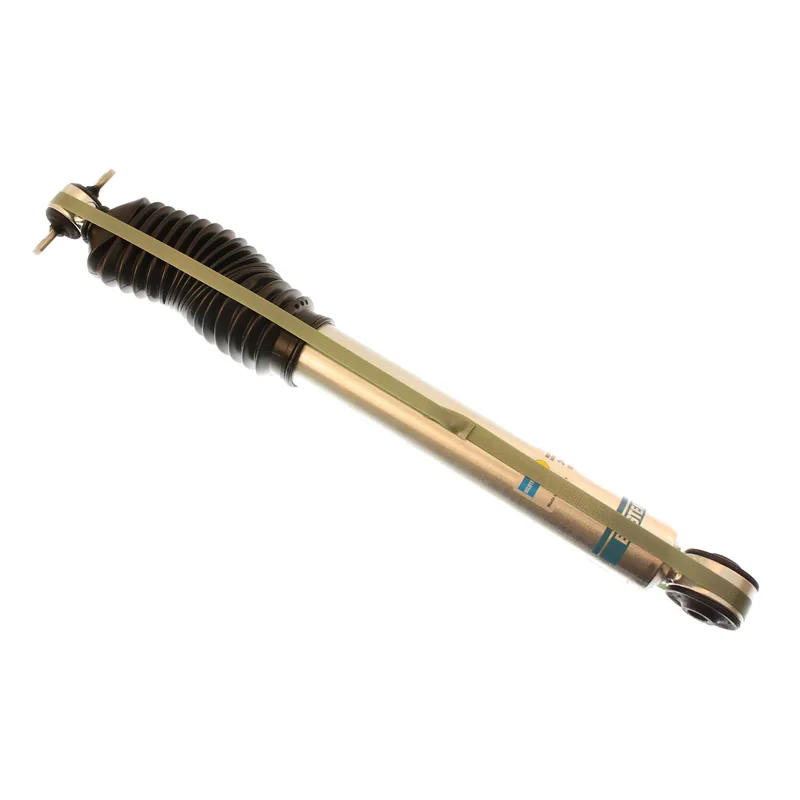

Bilstein 24-185615 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 73 × 13 × 13 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
38 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Tahoe | 1997–1999 | LS, LT | Rear | 4WD |
|
| Chevrolet Tahoe | 1995–1996 | Base, LS, LT | Rear | 4WD |
|
| GMC Yukon | 1998–1999 | SLE, SLT | Rear | 4WD |
|
| GMC Yukon | 1995–1997 | SLE, SLT | Rear | 4WD |
|
| Hummer H3 | 2010 | Alpha, Base | Rear | All |
|
| Hummer H3 | 2009 | Alpha, Base, Championship Series, X | Rear | All |
|
| Hummer H3 | 2008 | Alpha, Base, X | Rear | All |
|
| Hummer H3 | 2007 | Base, X | Rear | All |
|
| Hummer H3 | 2006 | Base | Rear | All |
|
| Hummer H3T | 2009–2010 | Alpha, Base | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.20
- Collapsed Length (in)
- 16.18
- Extended Length (mm)
- 665.5
- Collapsed Length (mm)
- 411.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Bar Pin
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 10.02
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
