BetterB8 5100

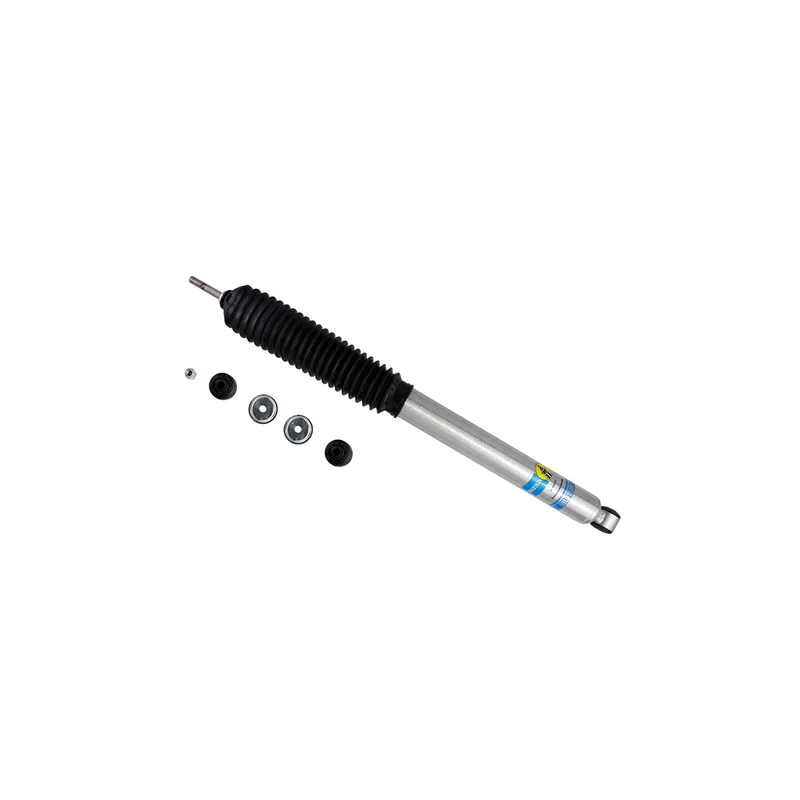

Bilstein 24-185417 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 76 × 11 × 11 cm, 2.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

34 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford F-150	Years	2001–2003	Submodels	King Ranch, Lariat, XL, XLT	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies
Ford F-150	Years	2001–2003	Submodels	King Ranch, Lariat, XL, XLT	Position	Rear	Drive / body / engine	RWD	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies
Ford F-150	Years	2000–2003	Submodels	Harley-Davidson Edition	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies
Ford F-150	Years	2000	Submodels	Base, Lariat, XL, XLT	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies
Ford F-150	Years	2000	Submodels	Base, Lariat, XL, XLT	Position	Rear	Drive / body / engine	RWD	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies
Ford F-150	Years	1997–1999	Submodels	Base, Lariat, XL, XLT	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-2" Rear Lift Fits Vehicles With 4-5" Rear Lift Check which applies
Ford F-150	Years	1997–1999	Submodels	Base, Lariat, XL, XLT	Position	Rear	Drive / body / engine	RWD	Notes	Fits Vehicles With 0-2" Rear Lift Fits Vehicles With 4-5" Rear Lift Check which applies
Ford F-150 Heritage	Years	2004	Submodels	XL, XLT	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies
Ford F-150 Heritage	Years	2004	Submodels	XL, XLT	Position	Rear	Drive / body / engine	RWD	Notes	Fits Vehicles With 0-2" Rear Lift With Light Duty Suspension (5-lug wheels) Fits Vehicles With 4-5" Rear Lift With Light Duty Suspension (5-lug wheels) Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 27.32
Collapsed Length (in): 16.38
Extended Length (mm): 694.0
Collapsed Length (mm): 416.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 12mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 10.94
Replacement Mounting Kit: B4-KT1-Z103A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
