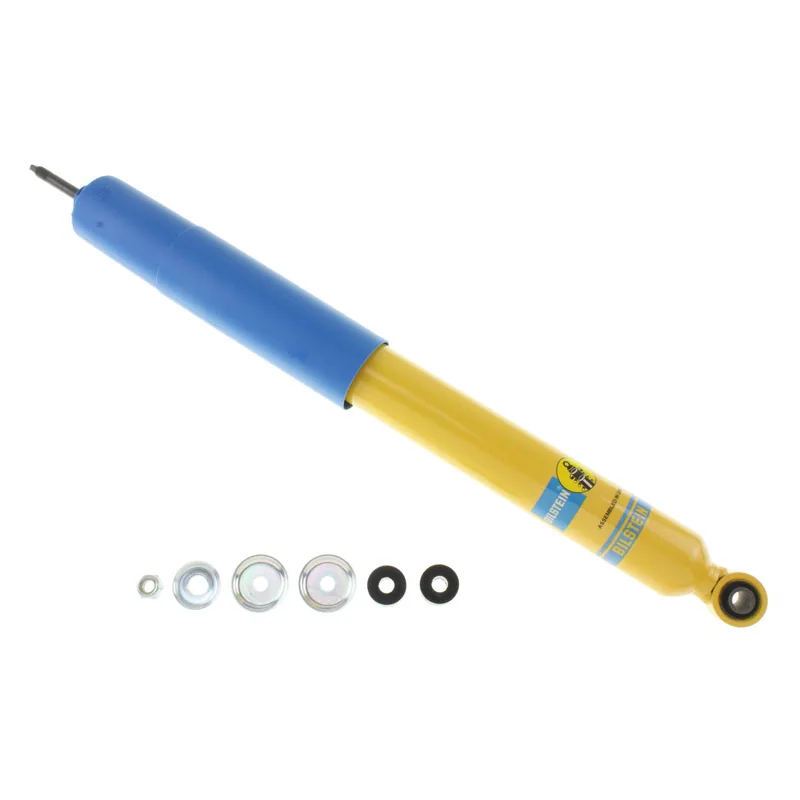

Bilstein 24-185394 B6 4600 Shock Absorber
Sold each · 2 per axle
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48531-09120, Toyota 48531-09121, Toyota 48531-09130, Toyota 48531-09131, Toyota 48531-09140, Toyota 48531-09141 and 22 more
Toyota 48531-09240, Toyota 48531-09250, Toyota 48531-09260, Toyota 48531-09270, Toyota 48531-09320, Toyota 48531-09330, Toyota 48531-09380, Toyota 48531-09390, Toyota 48531-09400, Toyota 48531-A9070, Toyota 48531-A9080, Toyota 48531-A9090, Toyota 48531-A9100, Toyota 48531-A9110, Toyota 48531-A9120, Toyota 48531-A9130, Toyota 48531-A9140, Toyota 48531-A9150, Toyota 48531-A9160, Toyota 48531-A9170, Toyota 48531-A9180, Toyota 48531-A9190
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 64 × 11 × 11 cm, 2.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
21 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tundra | 2000–2006 | Base, Limited, SR5 | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.45
- Collapsed Length (in)
- 13.94
- Extended Length (mm)
- 570.3
- Collapsed Length (mm)
- 354.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 12mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
Installation & warranty
100% genuine Bilstein, from authorized North American distribution.
