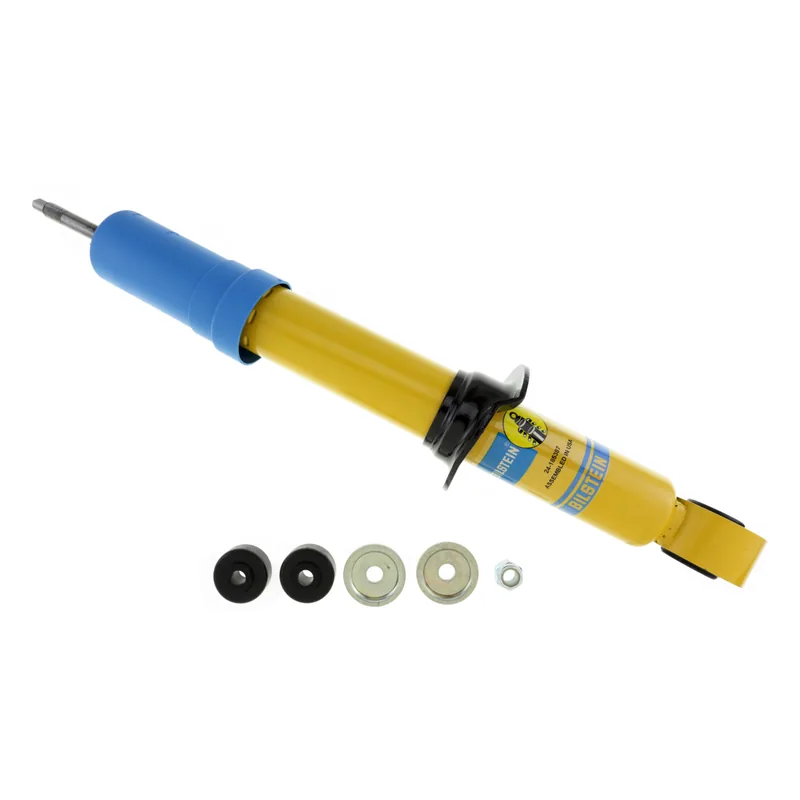

Bilstein 24-185387 B6 4600 Shock Absorber
Sold each · 2 per axle
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48510-09310, Toyota 48510-09320, Toyota 48510-09350, Toyota 48510-09490, Toyota 48510-09500, Toyota 48510-09730 and 21 more
Toyota 48510-09740, Toyota 48510-09750, Toyota 48510-09760, Toyota 48510-09770, Toyota 48510-A9130, Toyota 48510-A9170, Toyota 48510-A9180, Toyota 48510-A9280, Toyota 48510-A9290, Toyota 48510-A9300, Toyota 48510-A9310, Toyota 48510-A9450, Toyota 48510-A9520, Toyota 48510-A9530, Toyota 48510-A9540, Toyota 48510-A9550, Toyota 48510-A9560, Toyota 48510-A9570, Toyota 48510-A9580, Toyota 48510-A9590, Toyota 48510-A9600
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 52 × 11 × 11 cm, 3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
35 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Sequoia | 2001–2007 | Limited, SR5 | Front | All | — |
| Toyota Tundra | 2000–2006 | Base, Limited, SR5 | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 17.94
- Collapsed Length (in)
- 13.19
- Extended Length (mm)
- 455.7
- Collapsed Length (mm)
- 335.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.4mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
- Replacement Mounting Kit
- B4-KT1-Z219A01
Installation & warranty
100% genuine Bilstein, from authorized North American distribution.
