BetterB6 4600

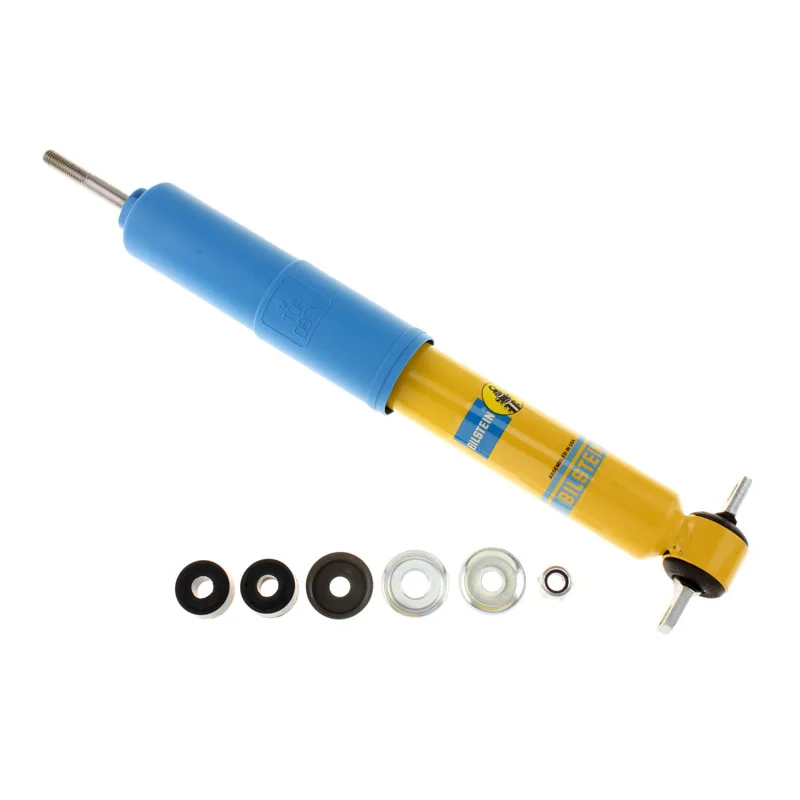

Bilstein 24-184991 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48510-09280, Toyota 48510-39436, Toyota 48510-39665, Toyota 48510-49080, Toyota 48510-80012, Toyota 48510-80025 and 5 more
Toyota 48510-A9080, Toyota 48510-A9140, Toyota 48510-A9160, Toyota 48511-80046, Toyota 48511-80083
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 42 × 13 × 13 cm, 1.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
12 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2001–2004 | Base | Front | RWD · L4 2.4L |
|
| Toyota Tacoma | 2001–2004 | Base | Front | RWD · V6 3.4L |
|
| Toyota Tacoma | 1998–2000 | Base, SR5 | Front | RWD · L4 2.4L |
|
| Toyota Tacoma | 1998–2000 | Base, SR5 | Front | RWD · V6 3.4L |
|
| Toyota Tacoma | 1996–1997 | Base | Front | RWD · L4 2.4L |
|
| Toyota Tacoma | 1996–1997 | Base | Front | RWD · V6 3.4L |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 13.98
- Collapsed Length (in)
- 9.09
- Extended Length (mm)
- 355.0
- Collapsed Length (mm)
- 231.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Bar Pin
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z008A00
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
