BetterB6 4600

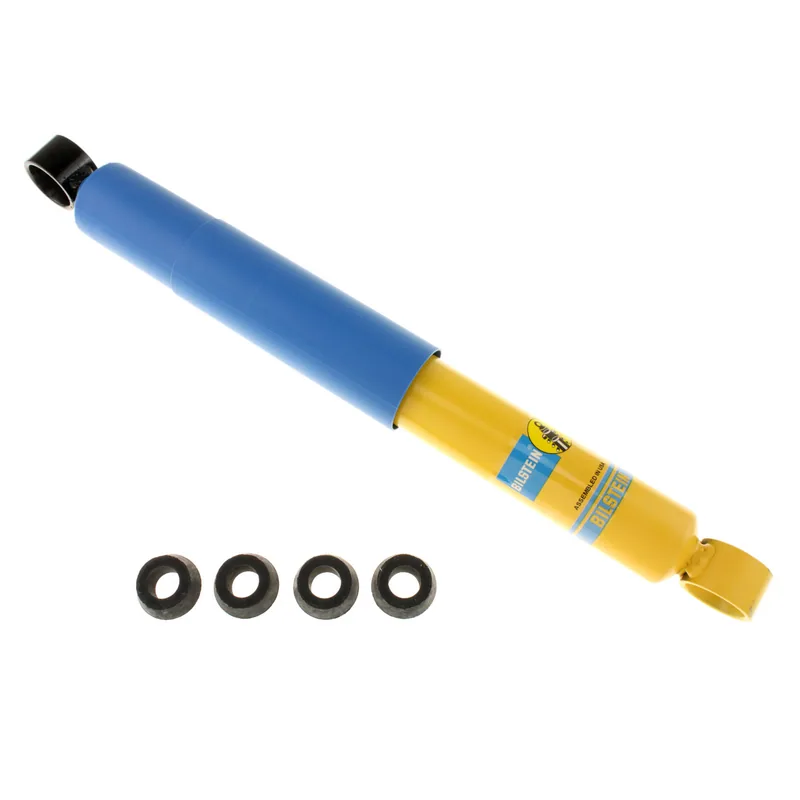

Bilstein 24-184977 B6 4600 Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 24-184960 B6 4600 Shock Absorber (Rear left)
- Replaces OE
- Toyota 48531-09100, Toyota 48531-80695, Toyota 48531-80696, Toyota 48531-A9020, Toyota 48531-A9040
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 58 × 11 × 11 cm, 2.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
25 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2001–2004 | Pre Runner | Rear right | All | — |
| Toyota Tacoma | 2001–2004 | Base | Rear right | 4WD · L4 2.7L | — |
| Toyota Tacoma | 2001–2004 | Base | Rear right | 4WD · V6 3.4L | — |
| Toyota Tacoma | 1998–2000 | Limited, Pre Runner | Rear right | All | — |
| Toyota Tacoma | 1998–2000 | Base, SR5 | Rear right | 4WD · L4 2.7L | — |
| Toyota Tacoma | 1998–2000 | Base, SR5 | Rear right | 4WD · V6 3.4L | — |
| Toyota Tacoma | 1996–1997 | Base | Rear right | 4WD · L4 2.7L | — |
| Toyota Tacoma | 1996–1997 | Base | Rear right | 4WD · V6 3.4L | — |
| Toyota Tacoma | 1995–1997 | SR5 | Rear right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.28
- Collapsed Length (in)
- 13.19
- Extended Length (mm)
- 515.0
- Collapsed Length (mm)
- 335.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Eye 19mm
- Lower Mount Type
- Eye 19mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z234A00
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
