BetterB8 5100

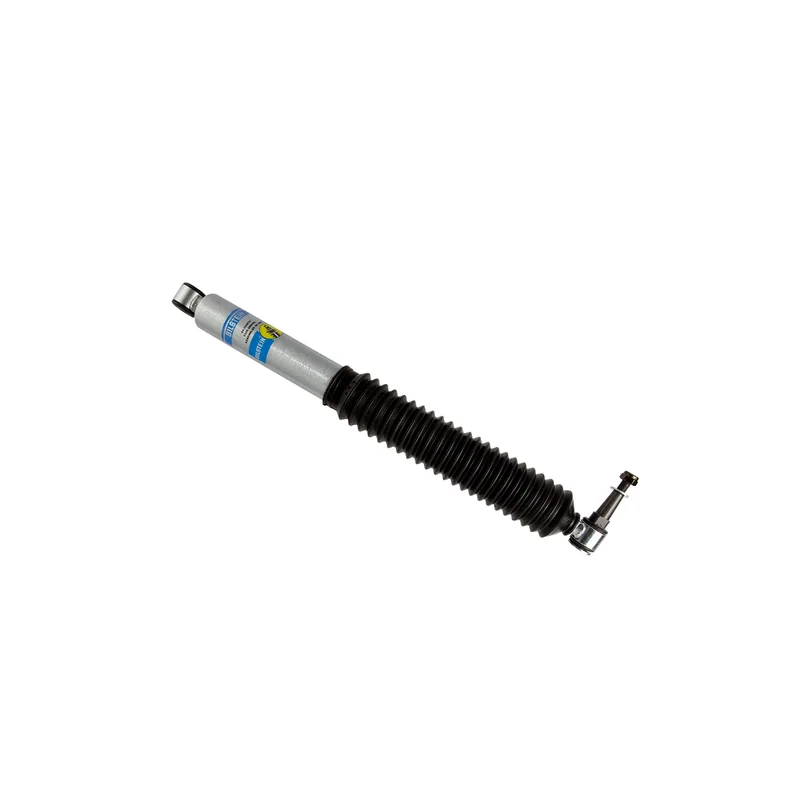

Bilstein 24-164870 B8 5100 Steering Damper Steering Damper

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 66 × 11 × 11 cm, 2.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

42 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Dodge Ram 1500	Years	2008	Submodels	Laramie, SLT, SXT	Position	Front	Drive / body / engine	4WD · Mega Cab / Extended Crew Cab Pickup	Notes	Cantilever to Eye Mounting Type Mega Cab Only Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 1500	Years	2006–2007	Submodels	Laramie, SLT	Position	Front	Drive / body / engine	4WD · Mega Cab / Extended Crew Cab Pickup	Notes	Cantilever to Eye Mounting Type Mega Cab Only Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 2500	Years	2006–2007	Submodels	Power Wagon, TRX4	Position	Front	Drive / body / engine	All	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 2500	Years	2006–2007	Submodels	Laramie, SLT, ST, Sport	Position	Front	Drive / body / engine	4WD	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 2500	Years	2005	Submodels	Laramie, SLT, ST	Position	Front	Drive / body / engine	4WD	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 2500	Years	2004	Submodels	SLT, ST	Position	Front	Drive / body / engine	4WD	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 3500	Years	2007	Submodels	TRX4	Position	Front	Drive / body / engine	All	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 3500	Years	2006–2007	Submodels	Laramie, SLT, ST, Sport	Position	Front	Drive / body / engine	4WD	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies
Dodge Ram 3500	Years	2003–2005	Submodels	Laramie, SLT, ST	Position	Front	Drive / body / engine	4WD	Notes	Cantilever to Eye Mounting Type Use Bilstein # 33-170794 for eye to eye mount steering damper installed under factory recall Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 23.54
Collapsed Length (in): 15.12
Extended Length (mm): 598.0
Collapsed Length (mm): 384.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 11mm
Upper Mount Type: Cantilever
Lower Mount Type: Eye 12.7mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Boot Included: Black Bellows
Stroke/travel Length (in): 8.42

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
